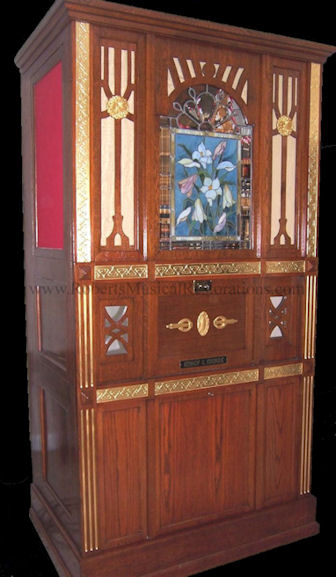

Imhof & Mukle 45 note 58 key Orchestrion model #6 Consisting of a 45 note piano, 12 bells, mandolin rail, bass & snare drum, Cymbal and

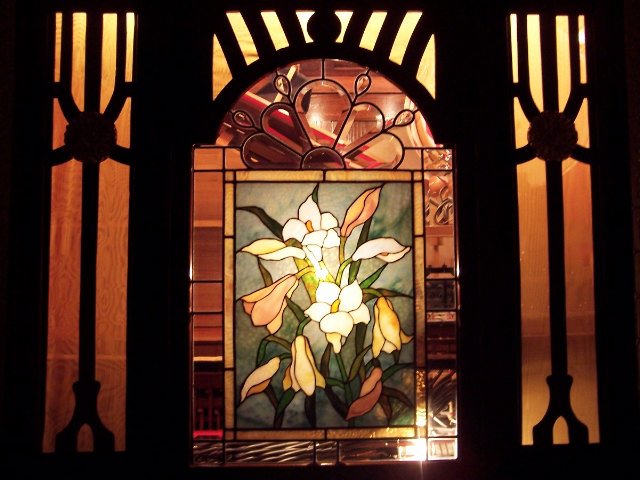

27 Violin pipes. Gold leafed & stained glass facade.

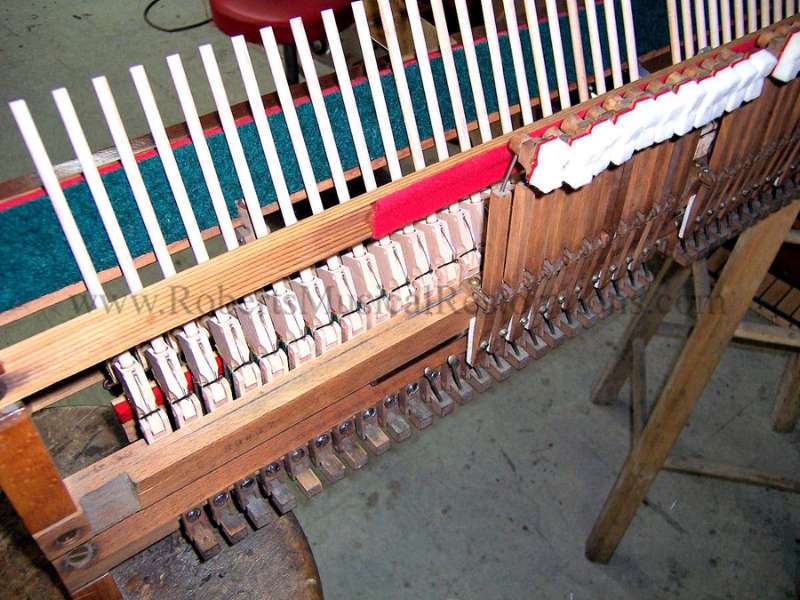

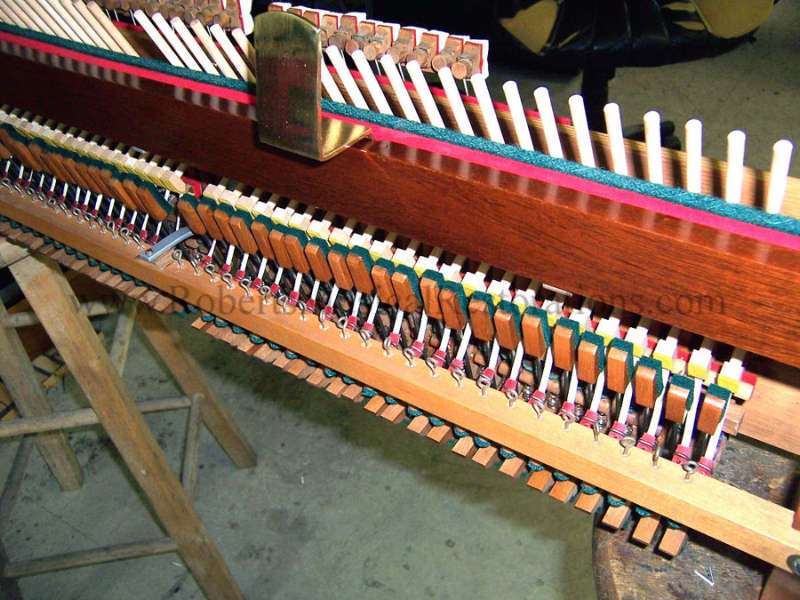

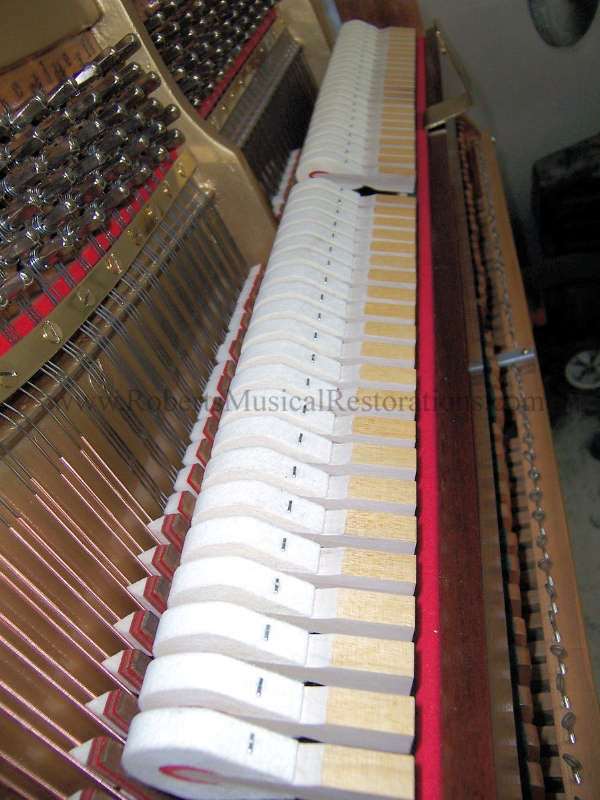

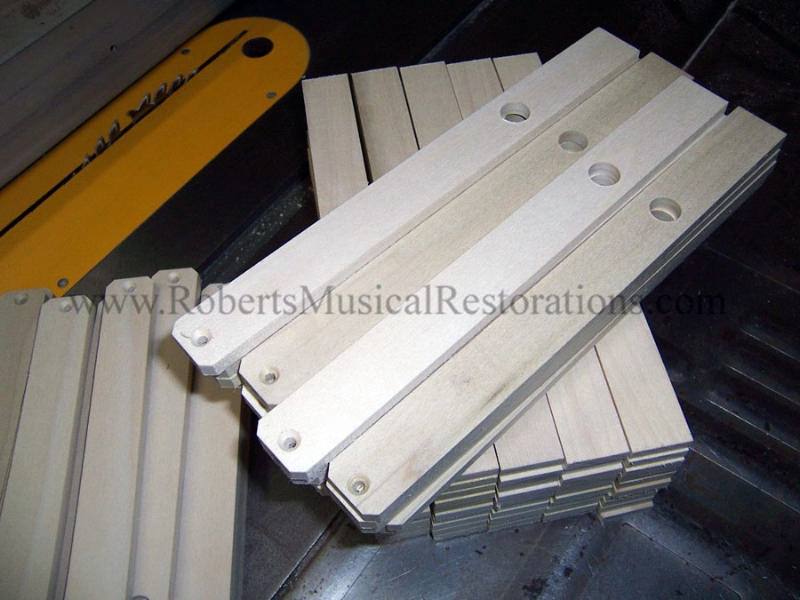

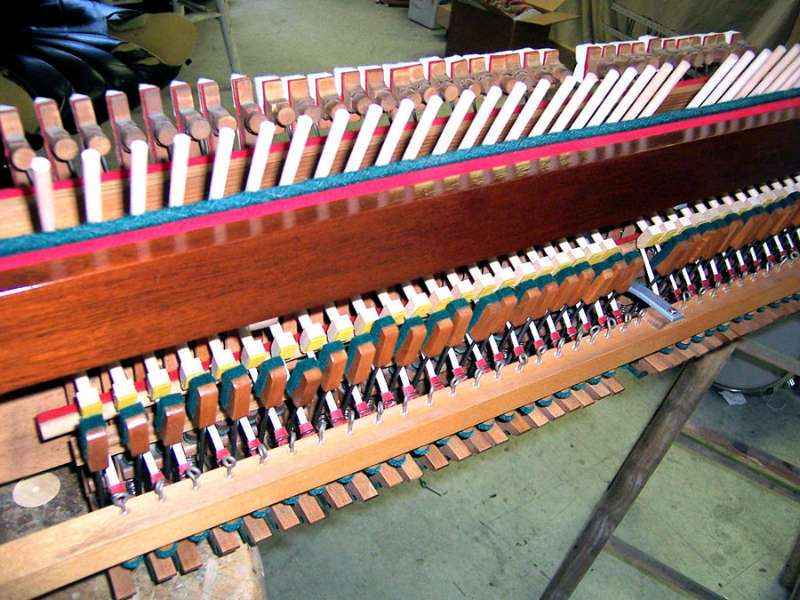

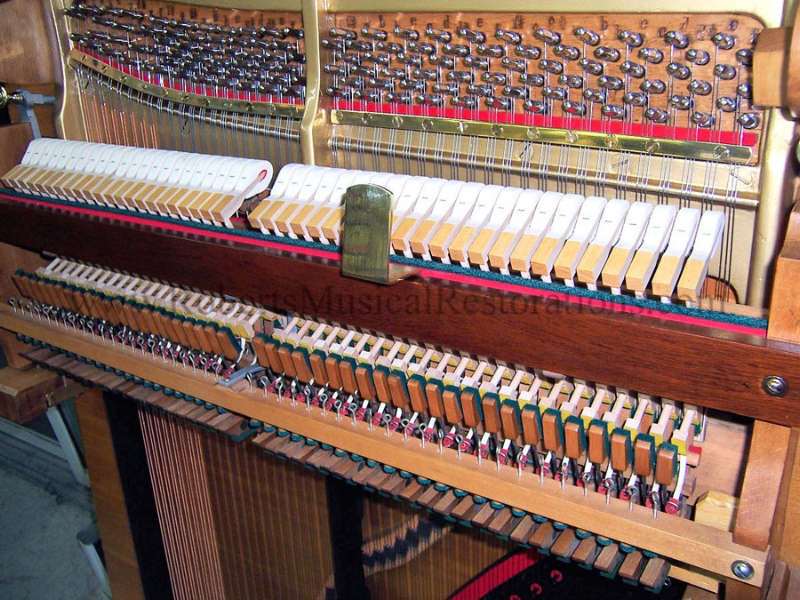

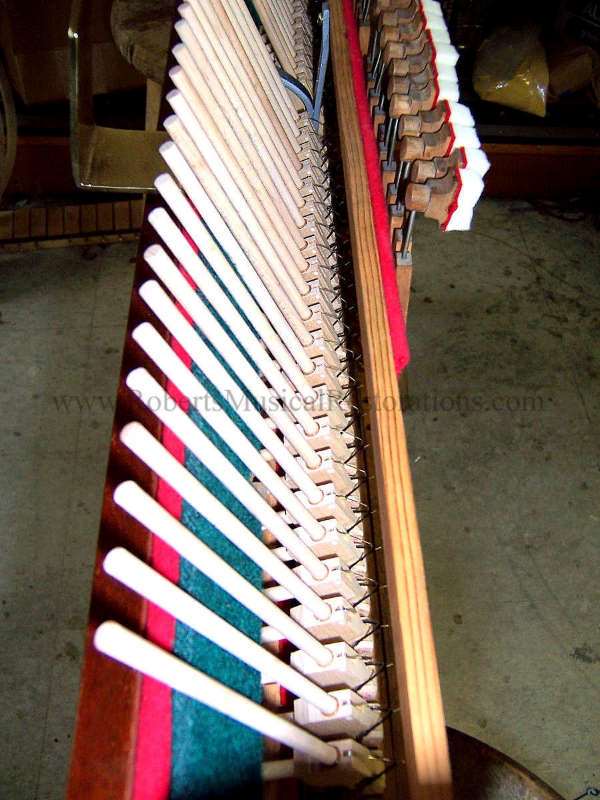

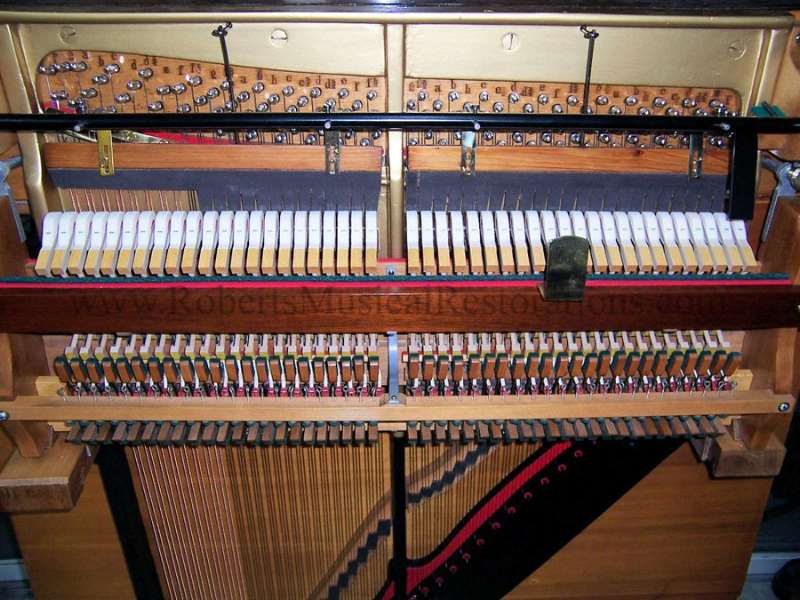

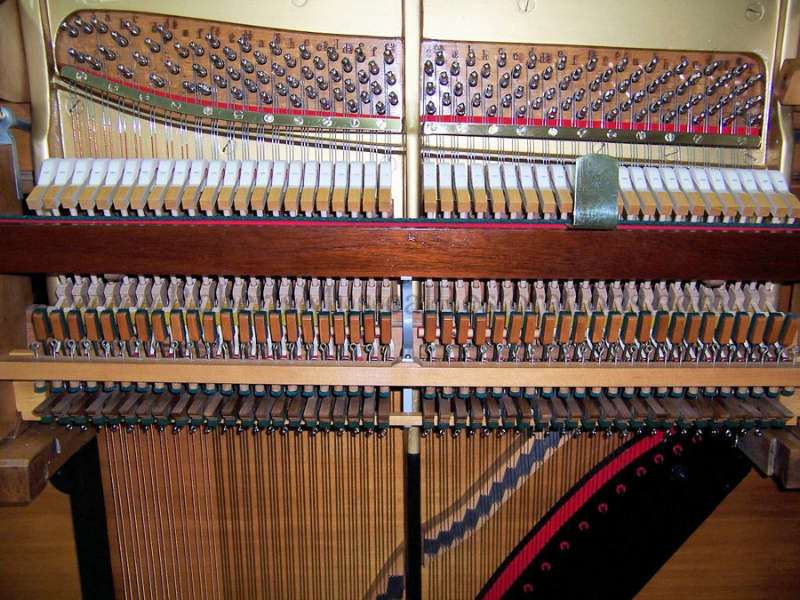

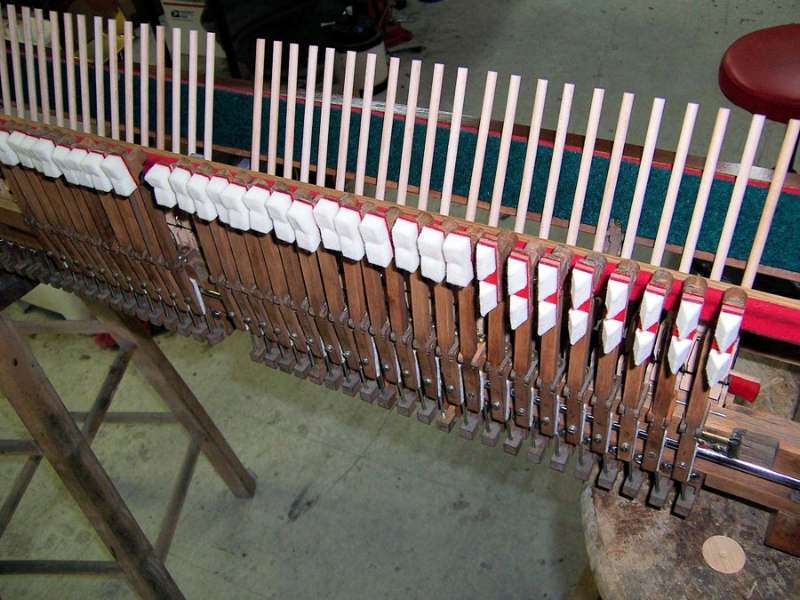

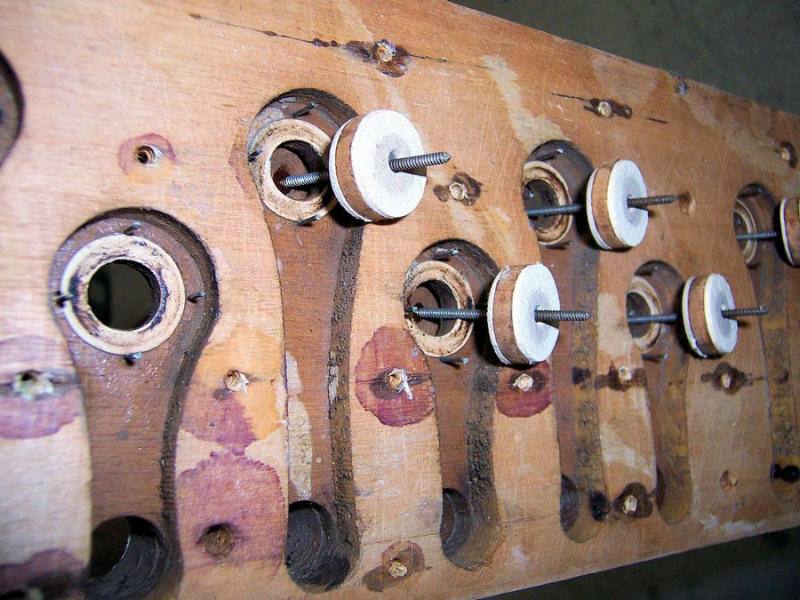

HAMMER ACTION- All new Hammer Butts where installed. They had to be modified to match the original.

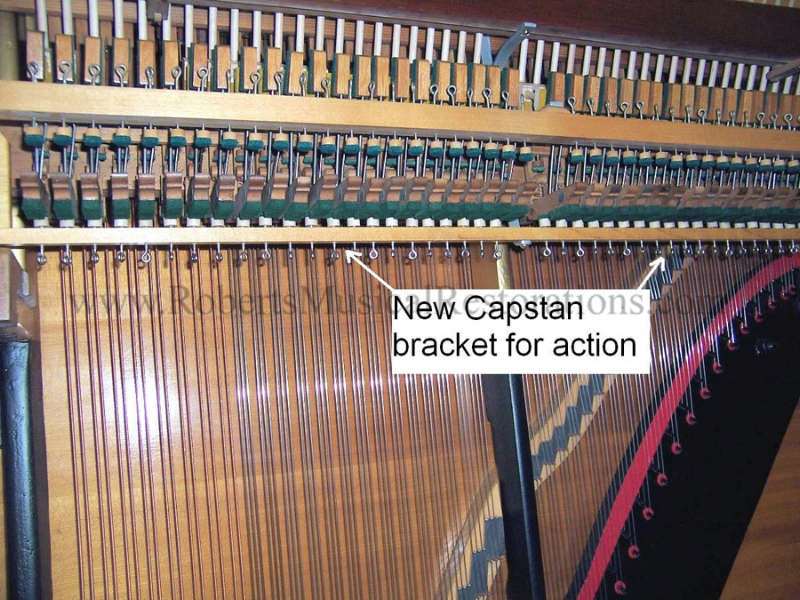

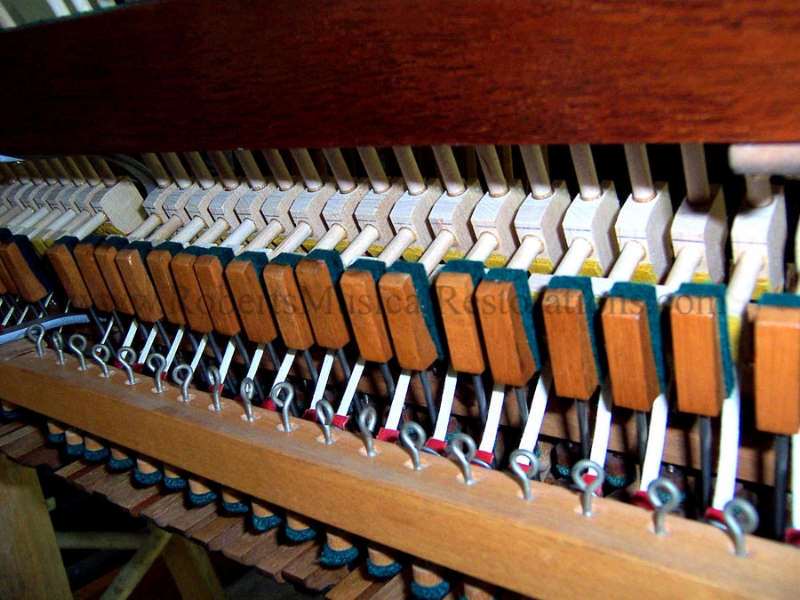

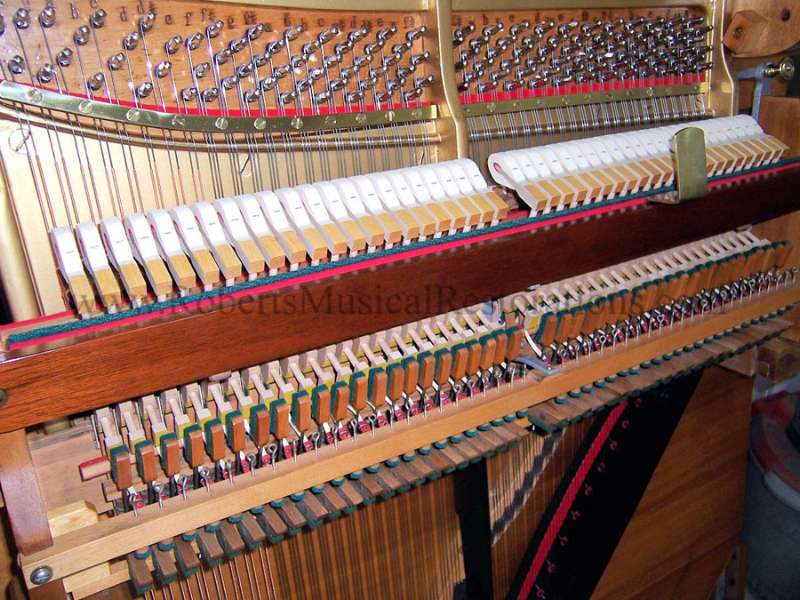

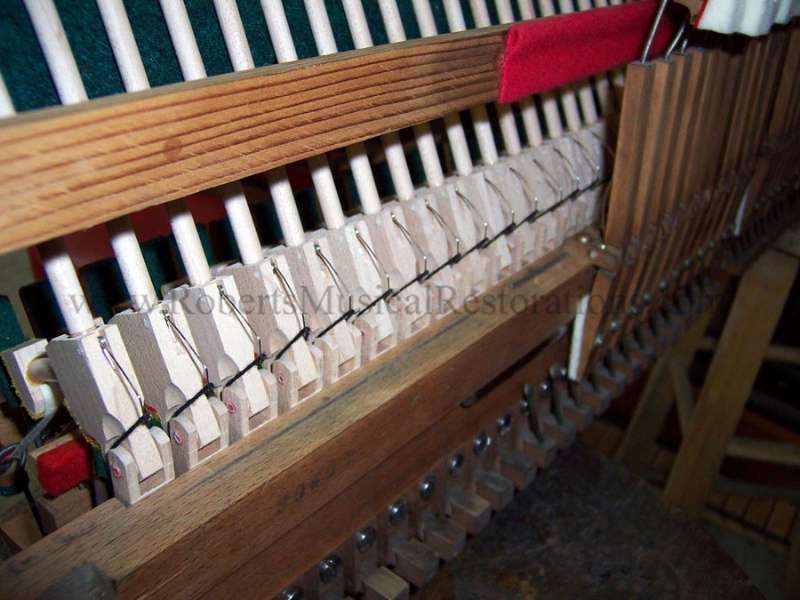

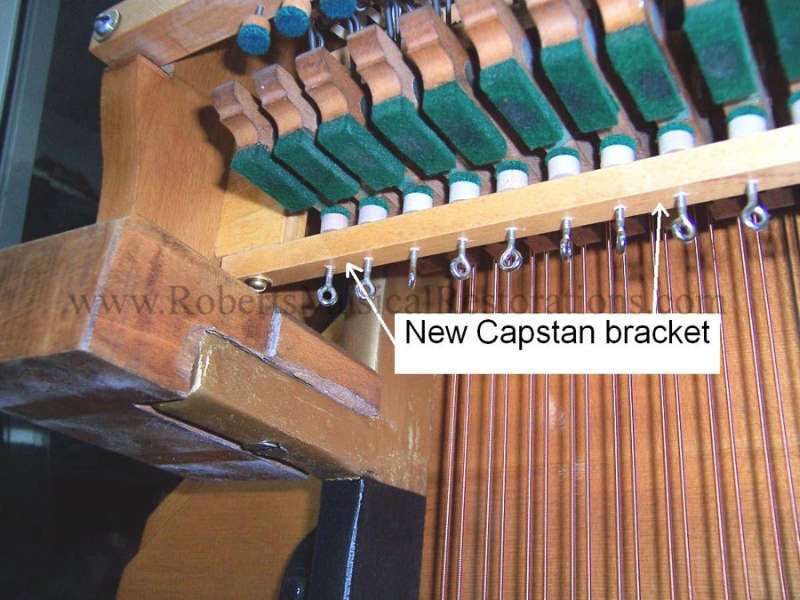

Built a Capstan bar to adjust the "end play" of the jacks. THIS was a BIG over site that had snowballed in the previous restoration and made a very sloppy action. Its like taking the Capstan screws out of the back of a piano keys. The action just hangs. Because of this the pneumatics where made with to large of an opening to compensate for the extra movement that had to be made for the notes to play. (see details on picture) Normally for a note to play you need 3/8 to 1/2" of movement. As it was, it needed 7/8". Almost twice the movement. Now the action is back to regular regulation specs. All complete!

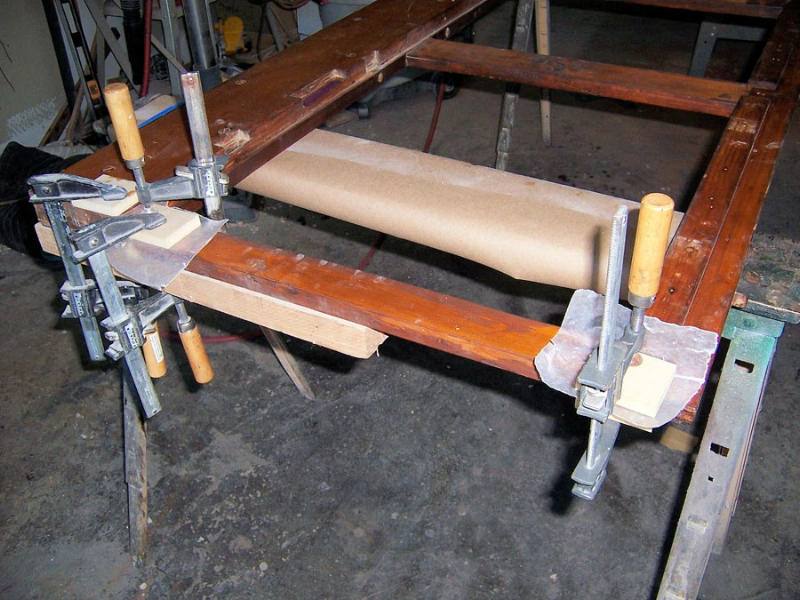

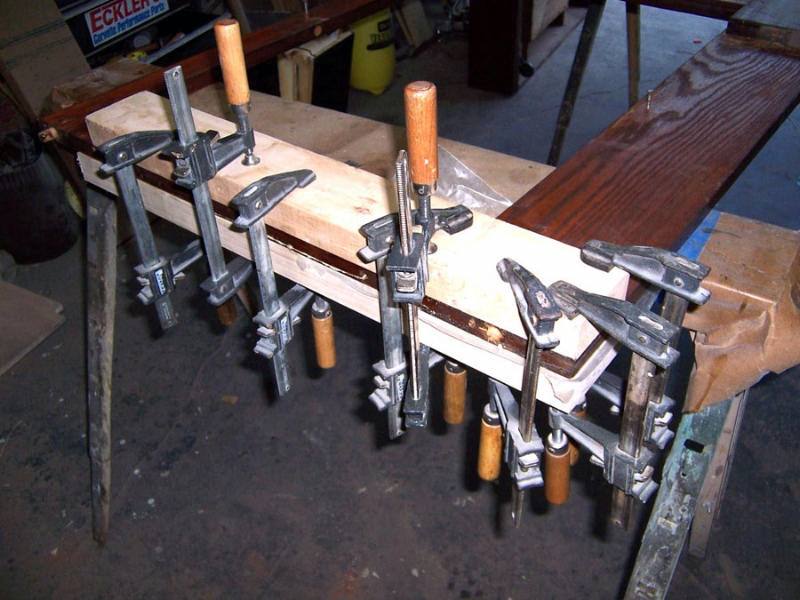

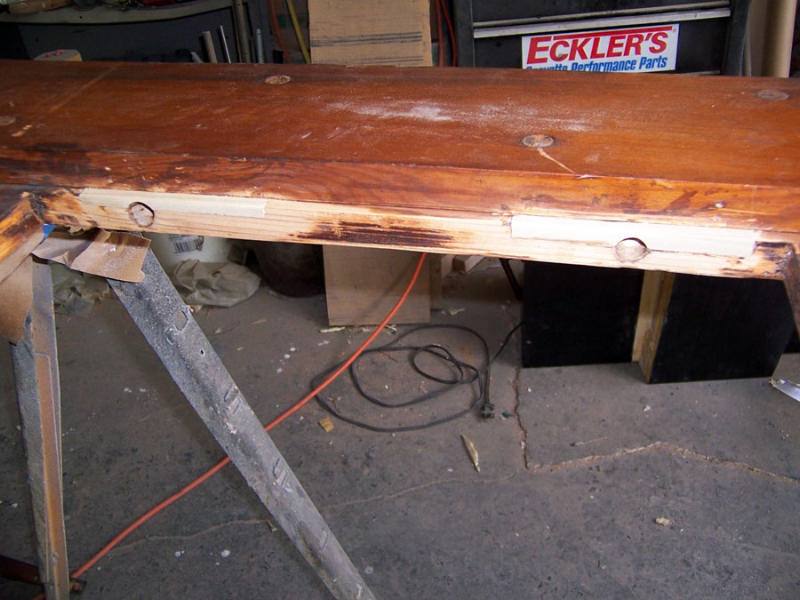

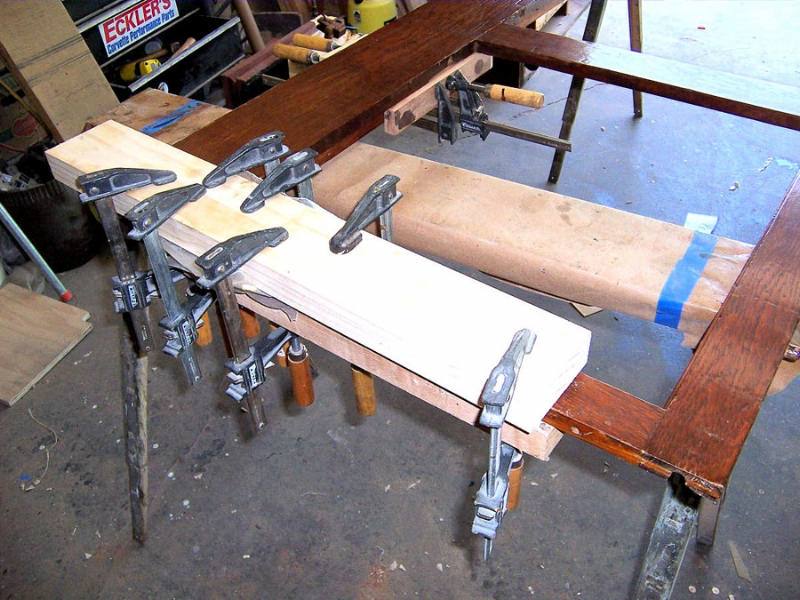

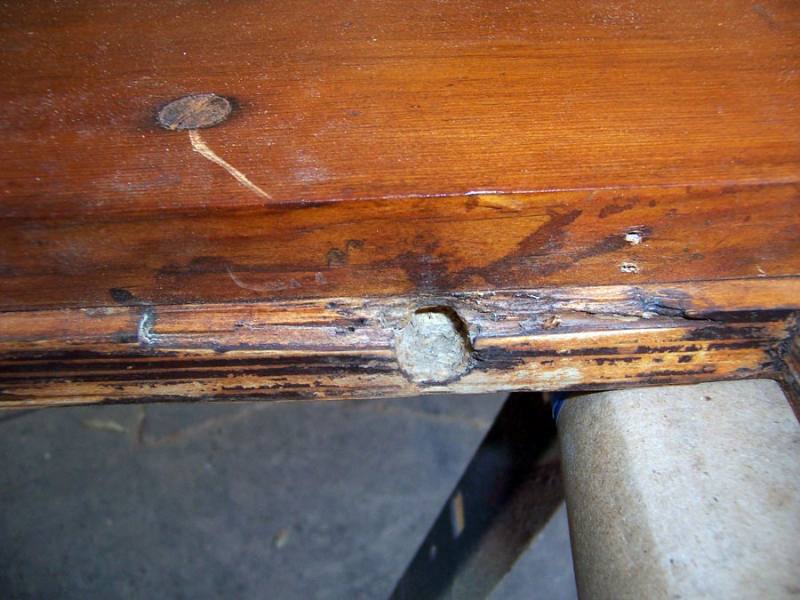

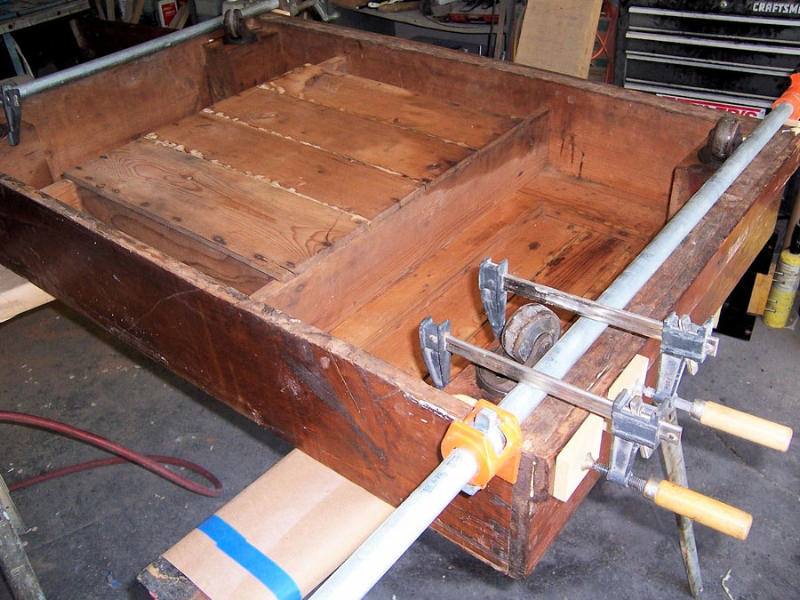

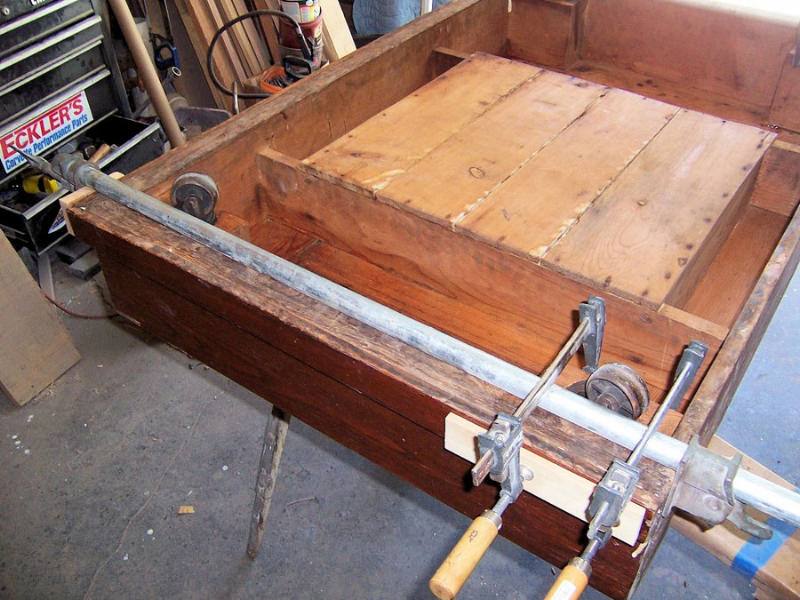

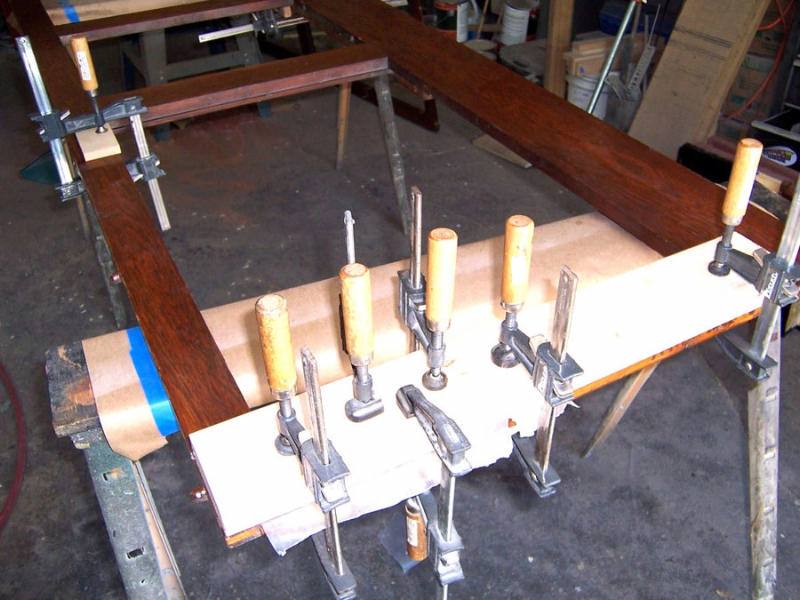

SIDE OF CASE- Joints on the sides where very weak and starting to separate. Joints where taken apart and re-glued.

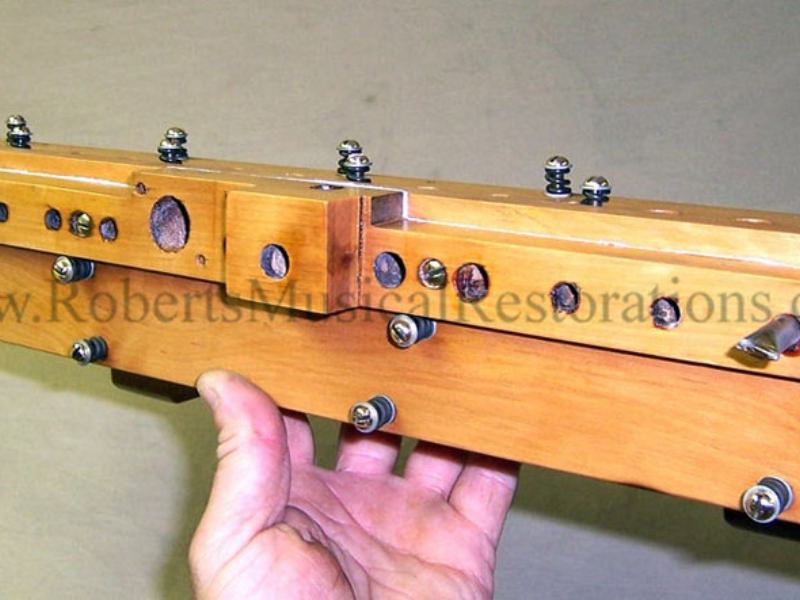

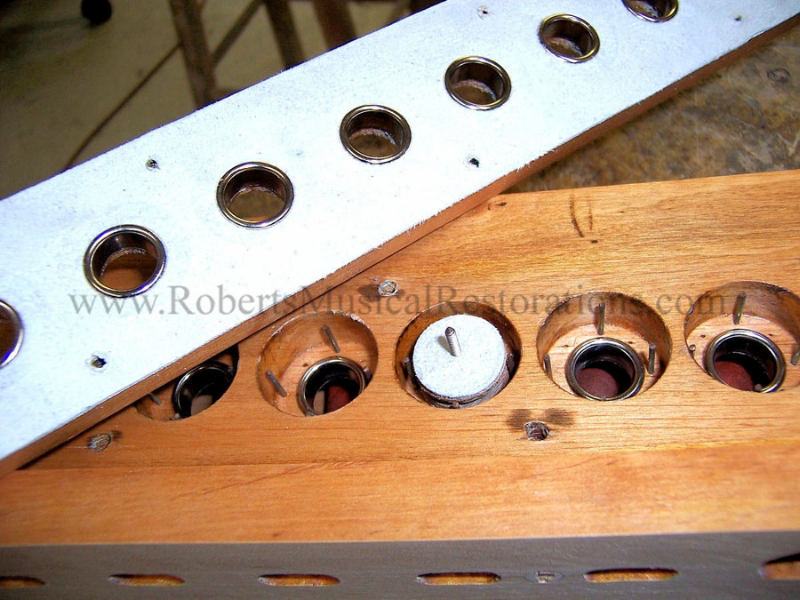

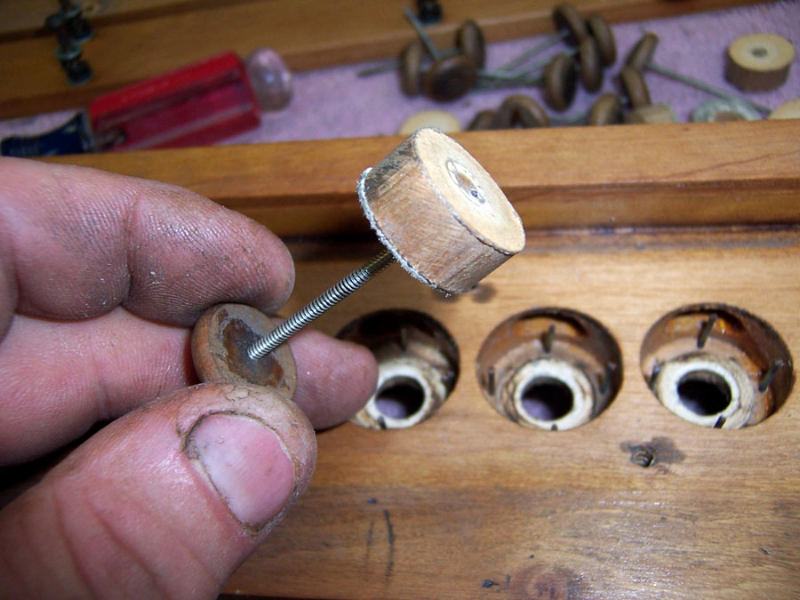

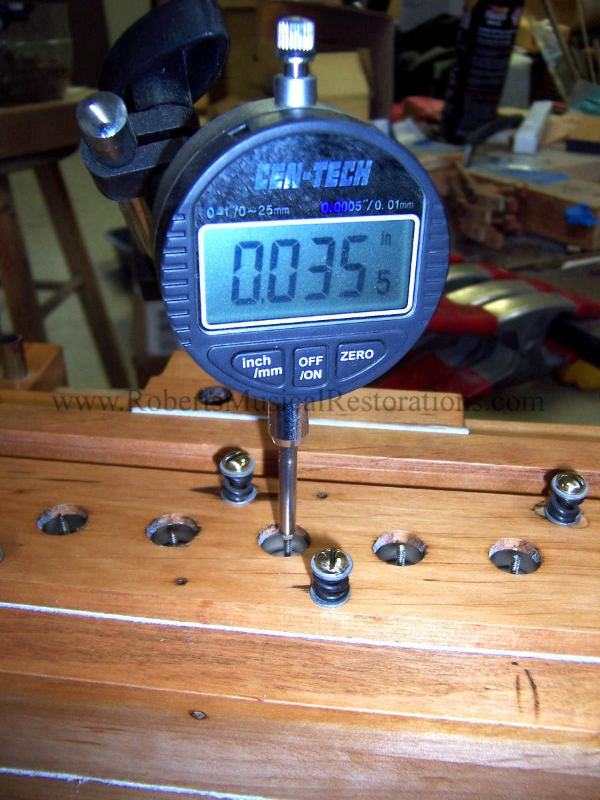

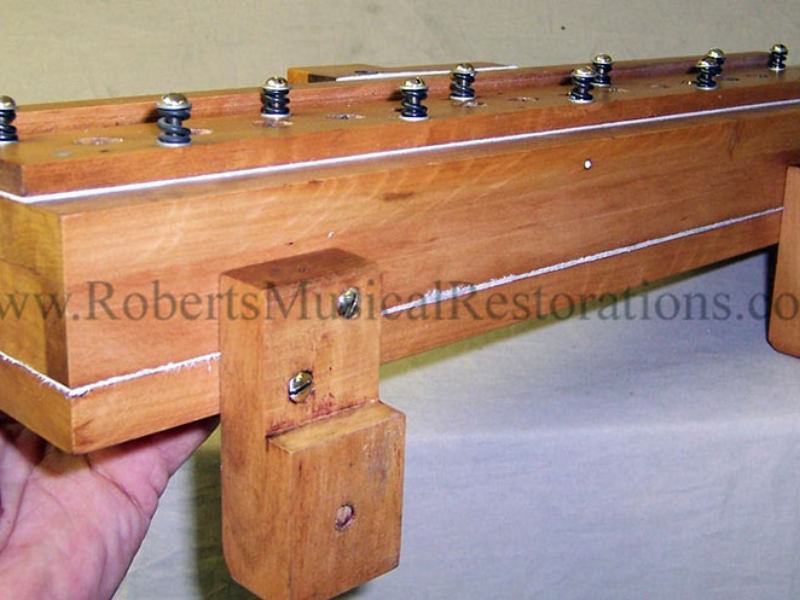

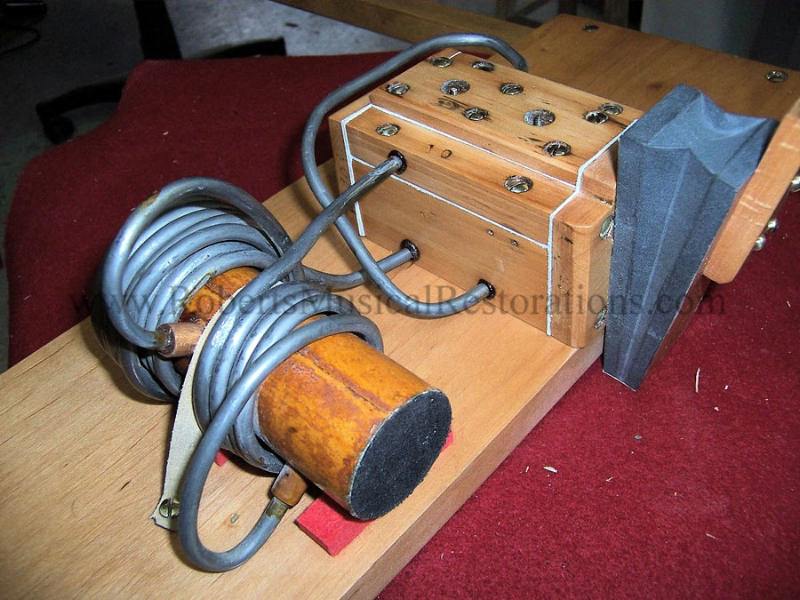

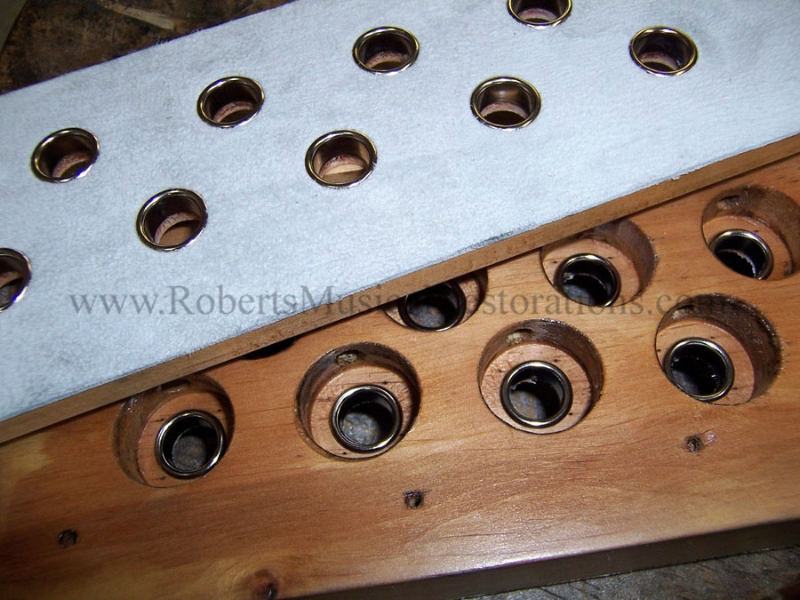

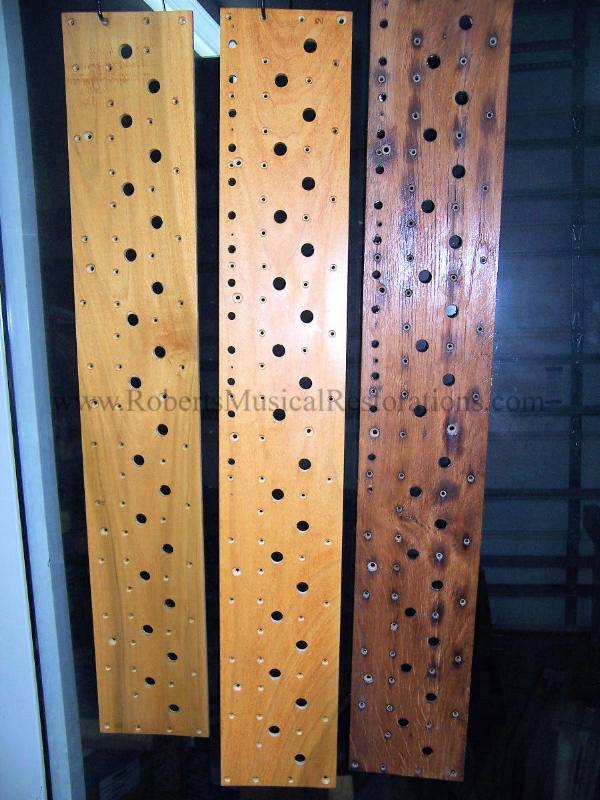

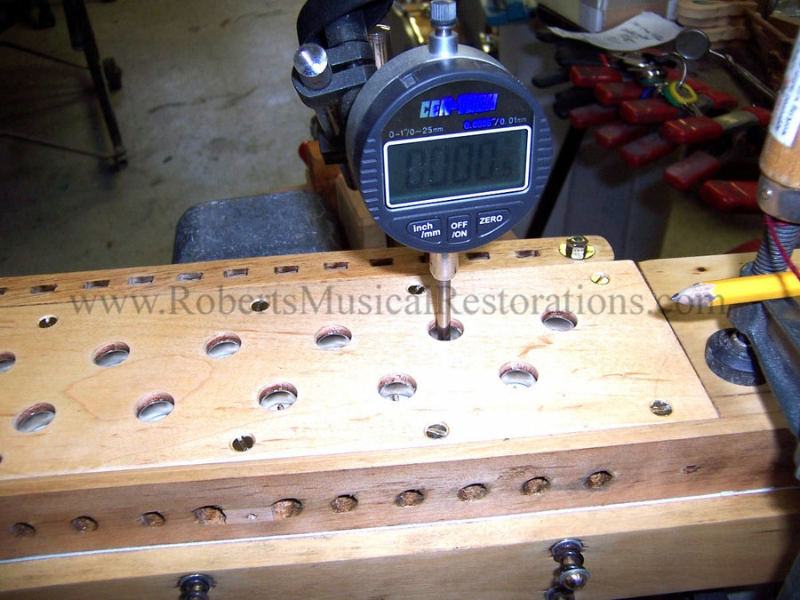

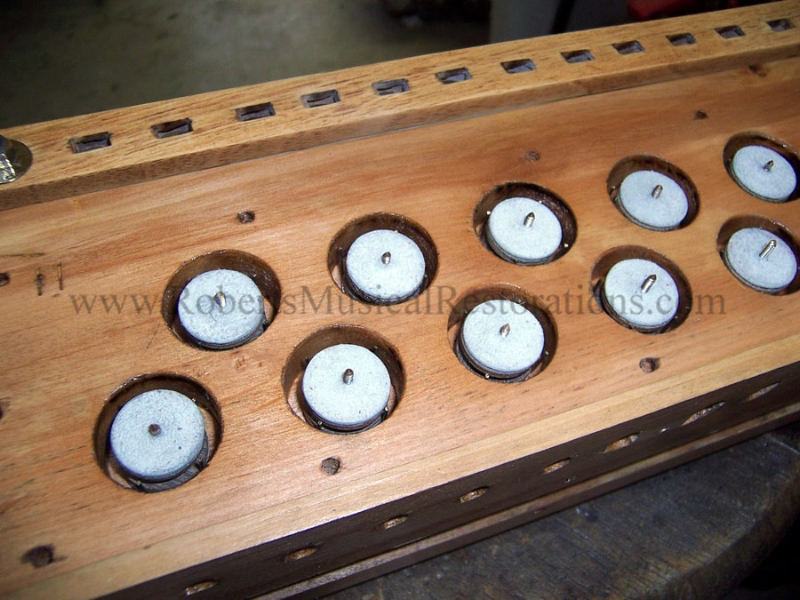

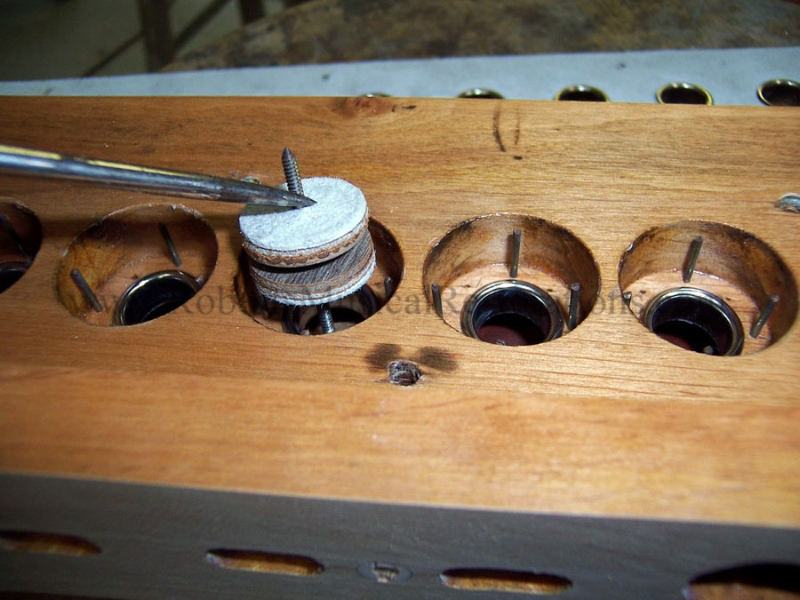

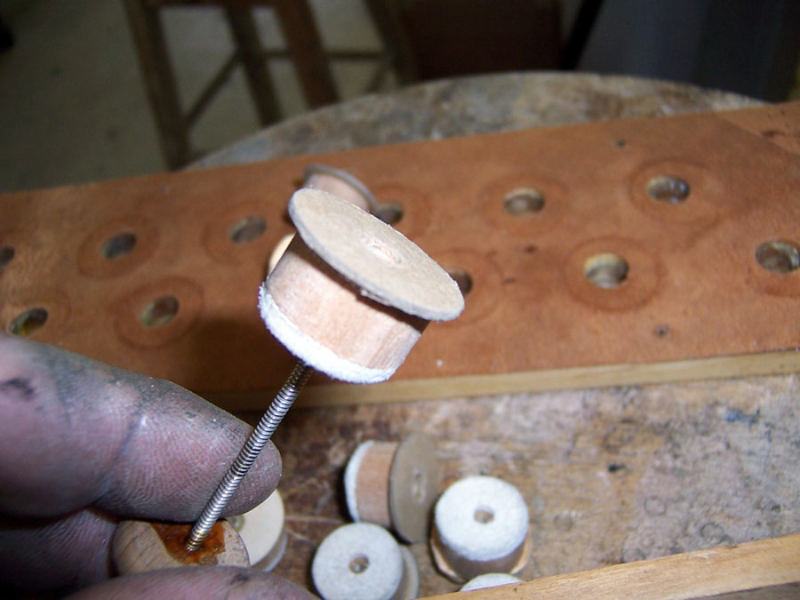

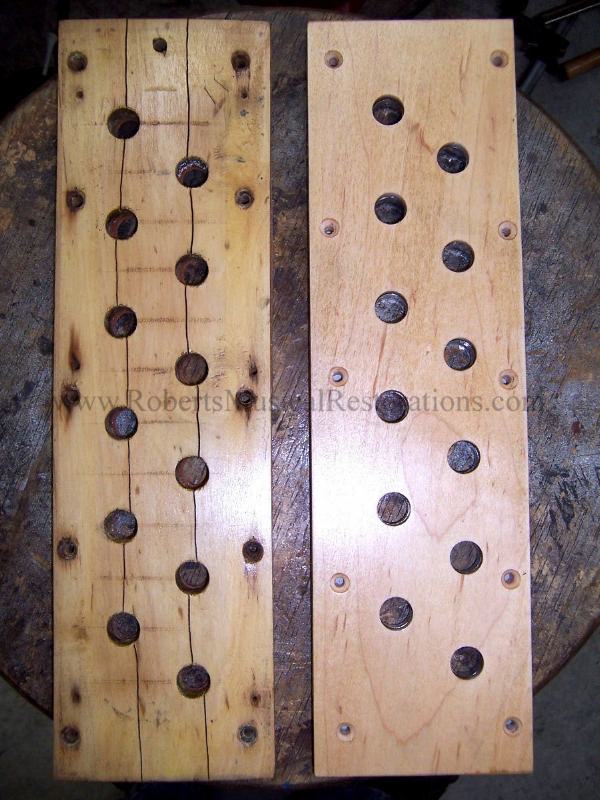

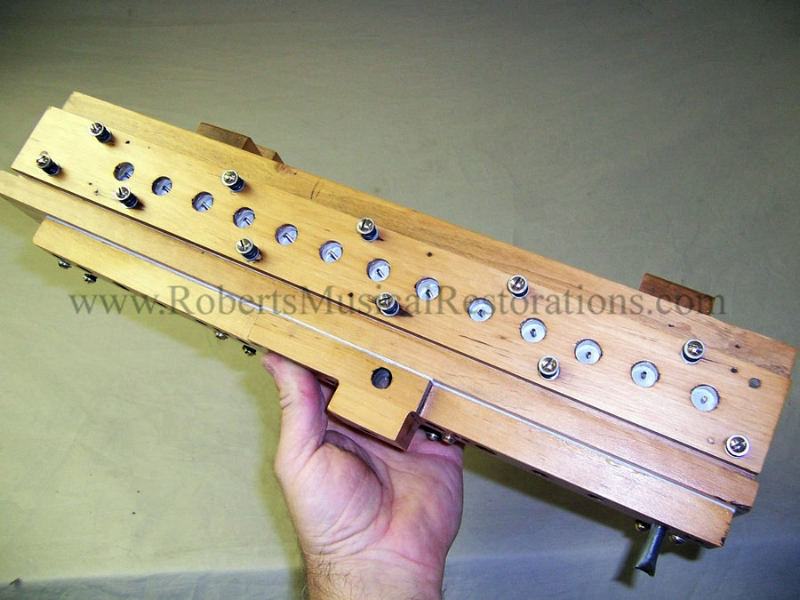

MAIN VALVE BODY FOR CONTROLLING INSTRUMENTS
MAIN VALVE BODY FOR CONTROLLING THE BELLS

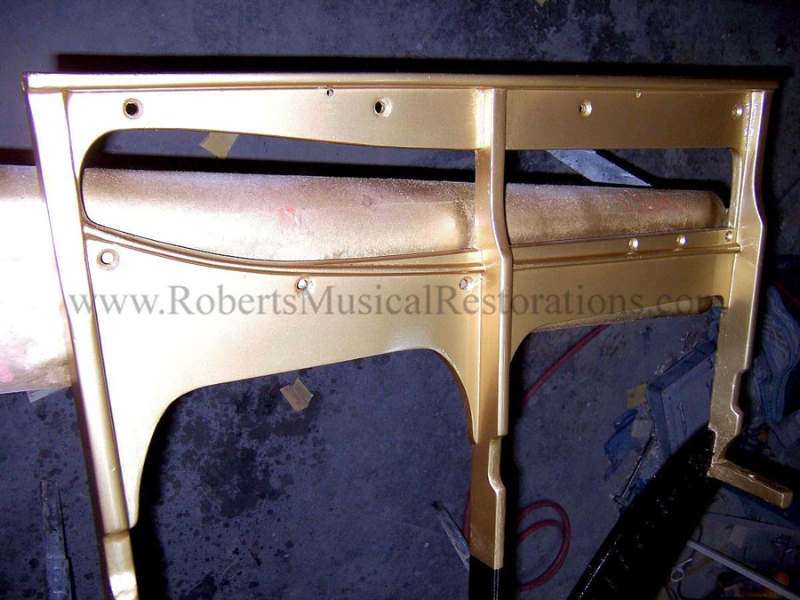

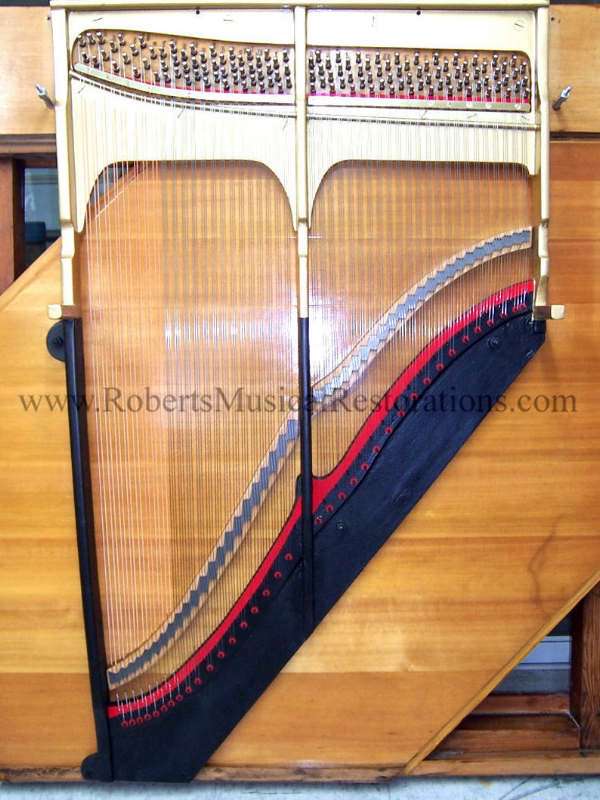

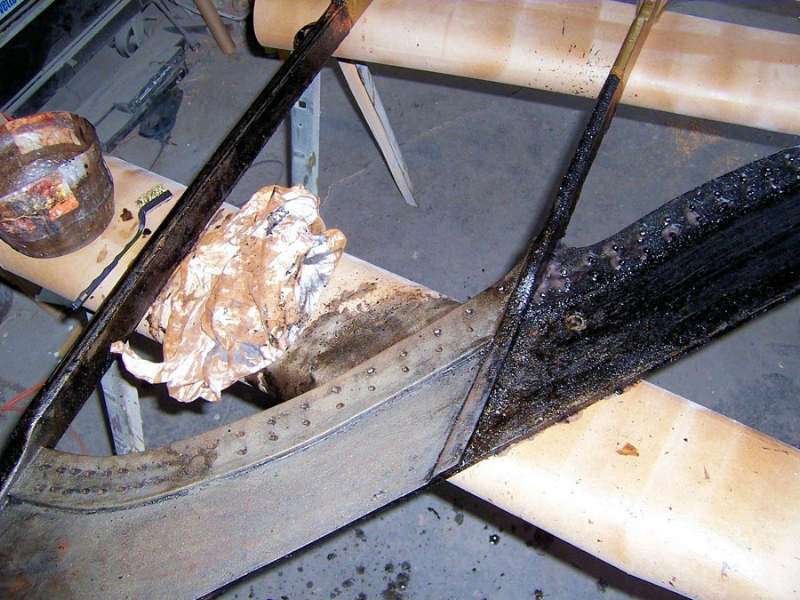

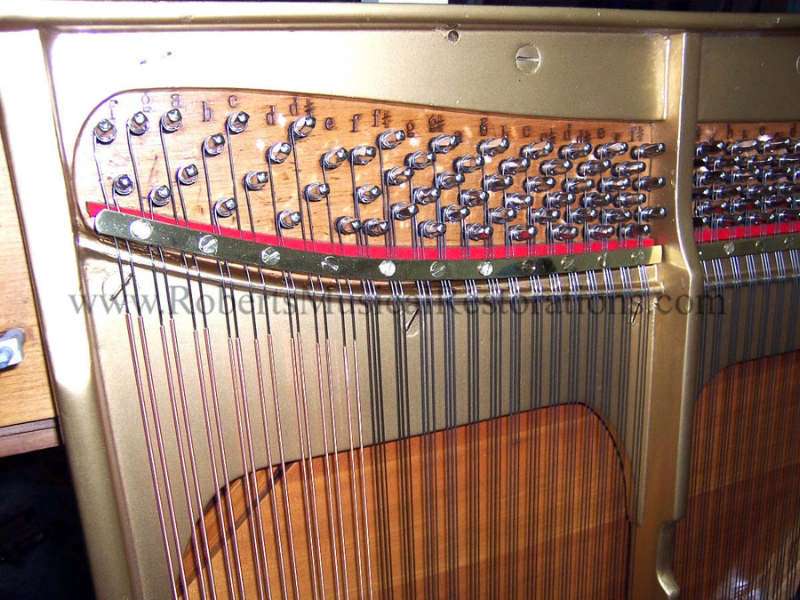

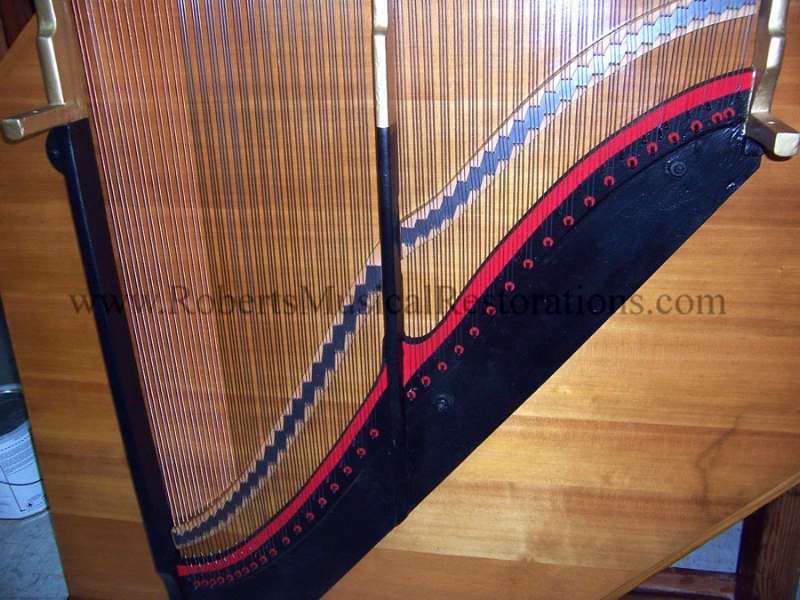

HARP (PLATE)

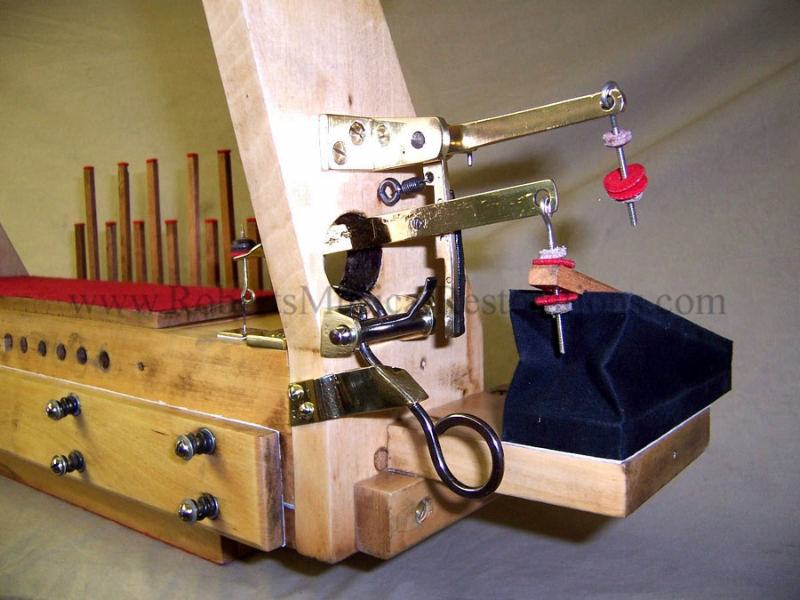

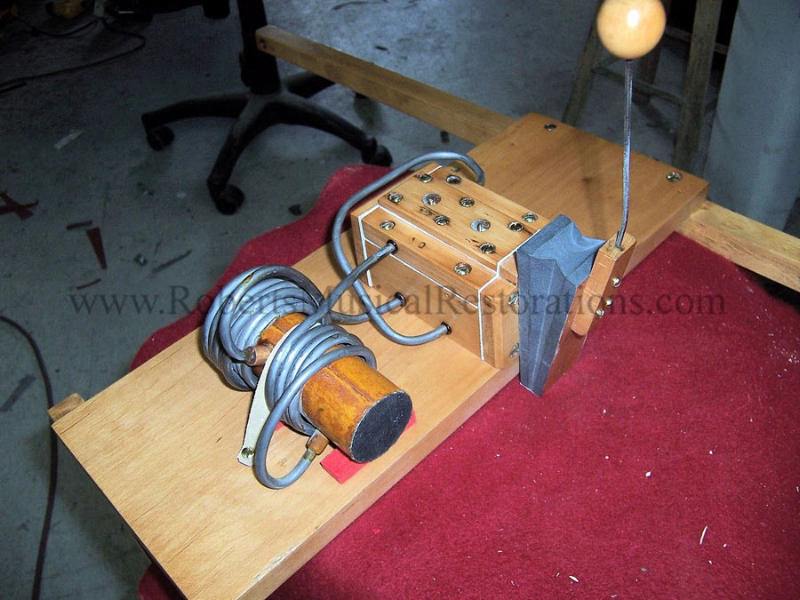

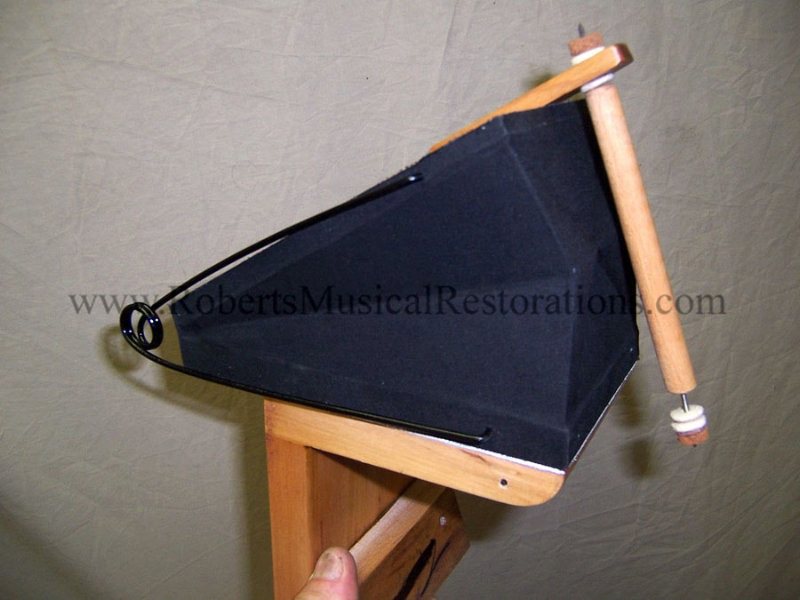

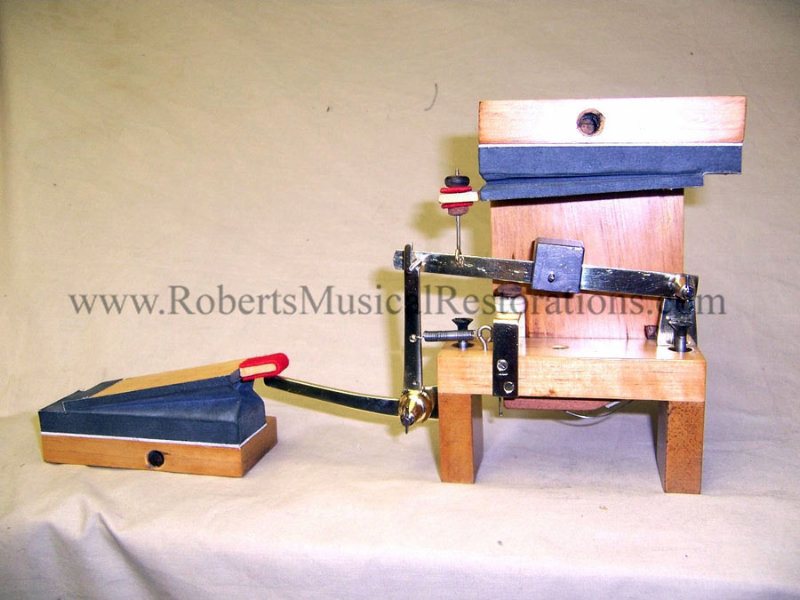

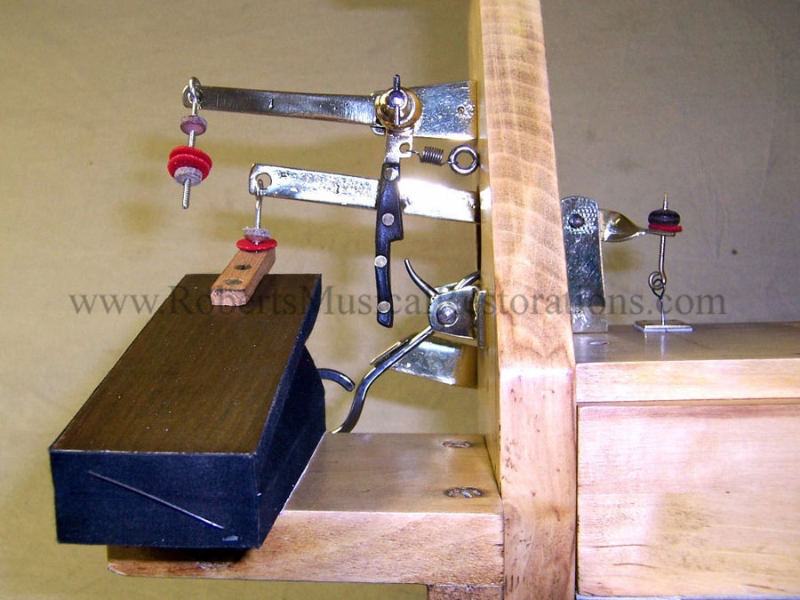

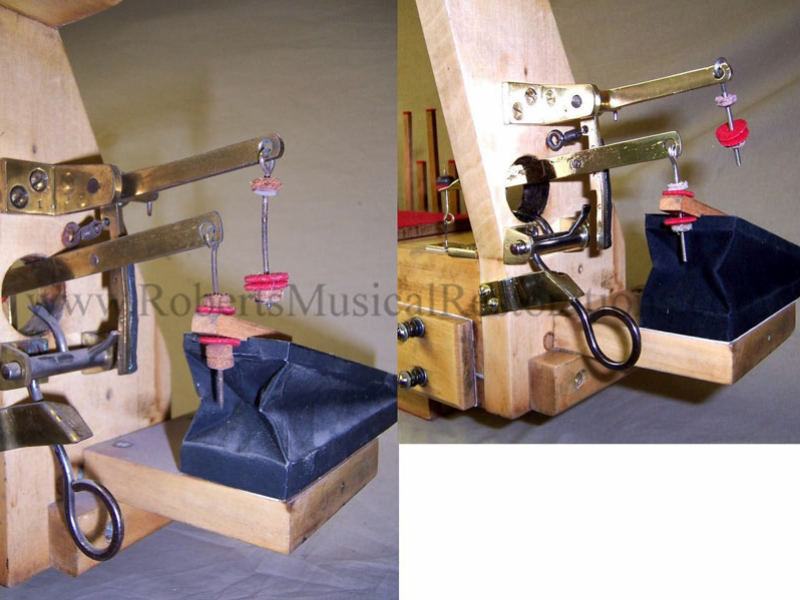

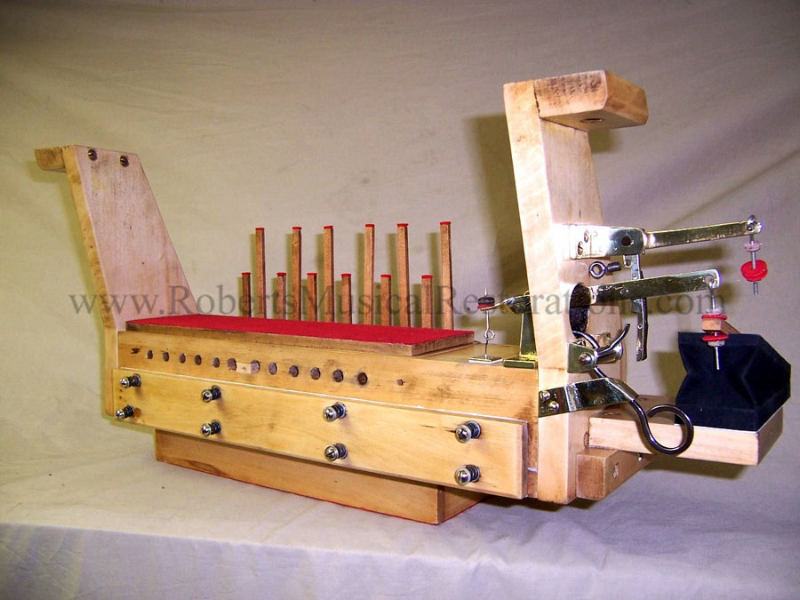

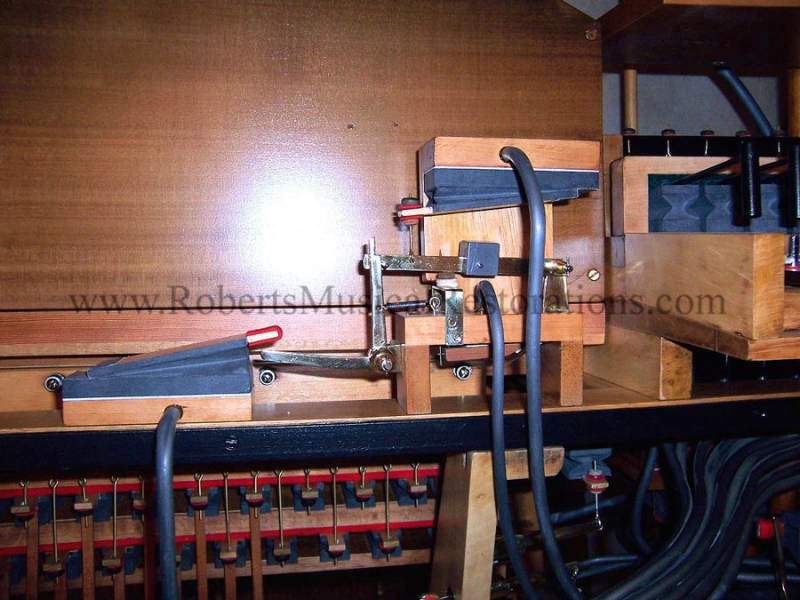

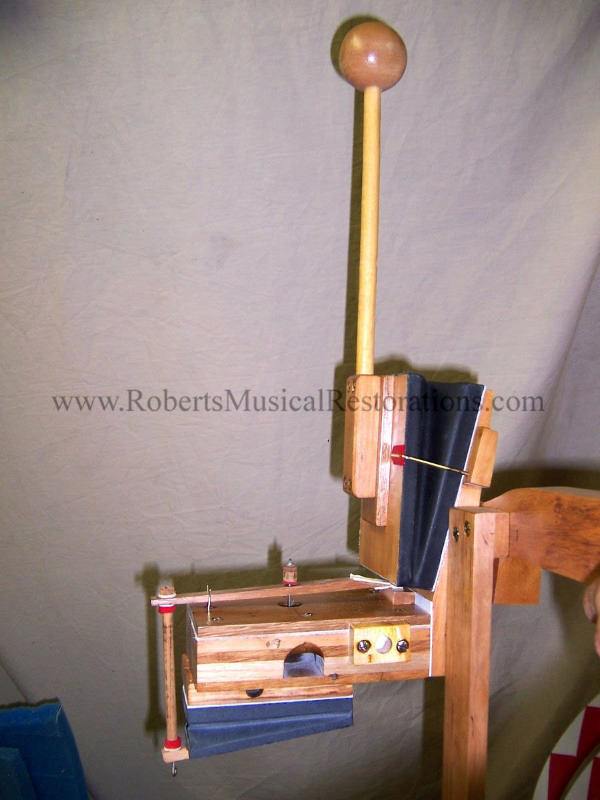

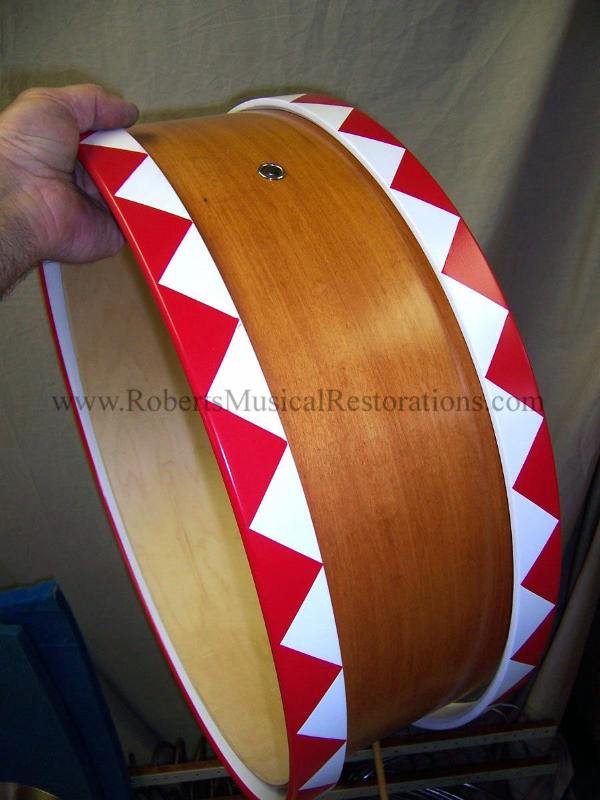

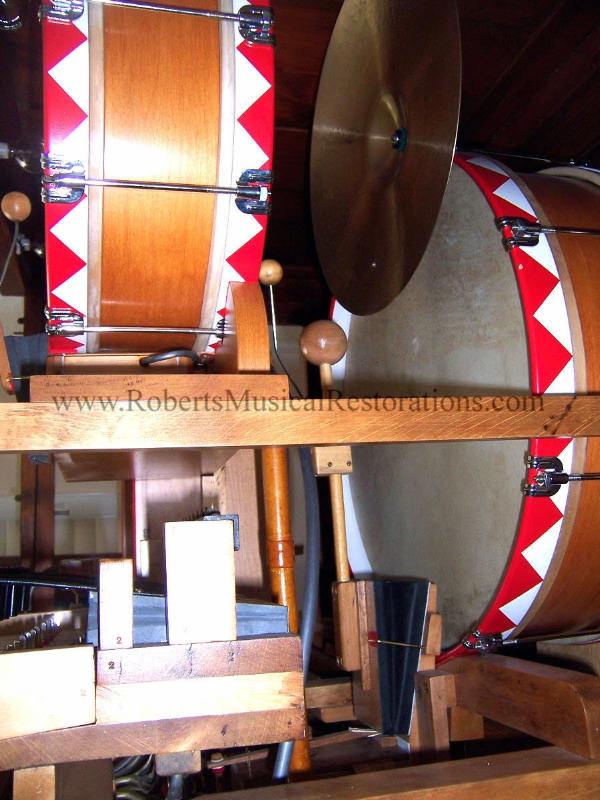

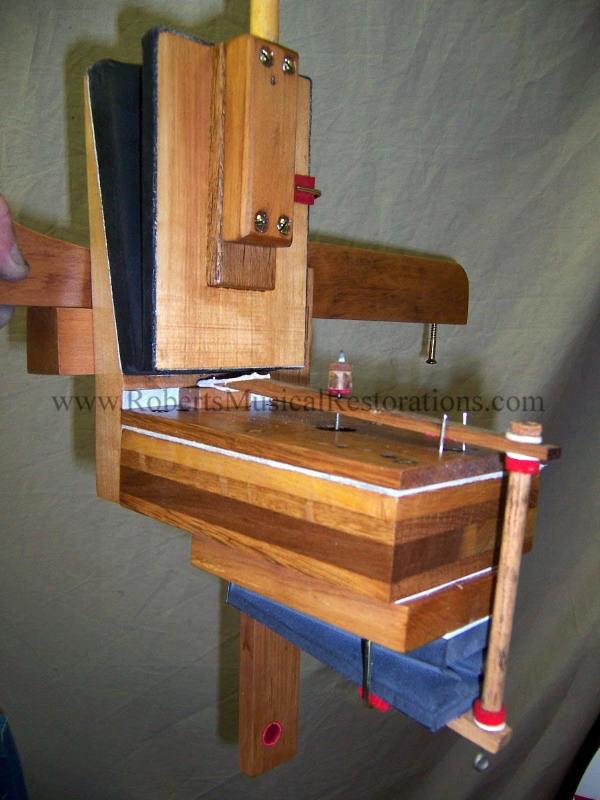

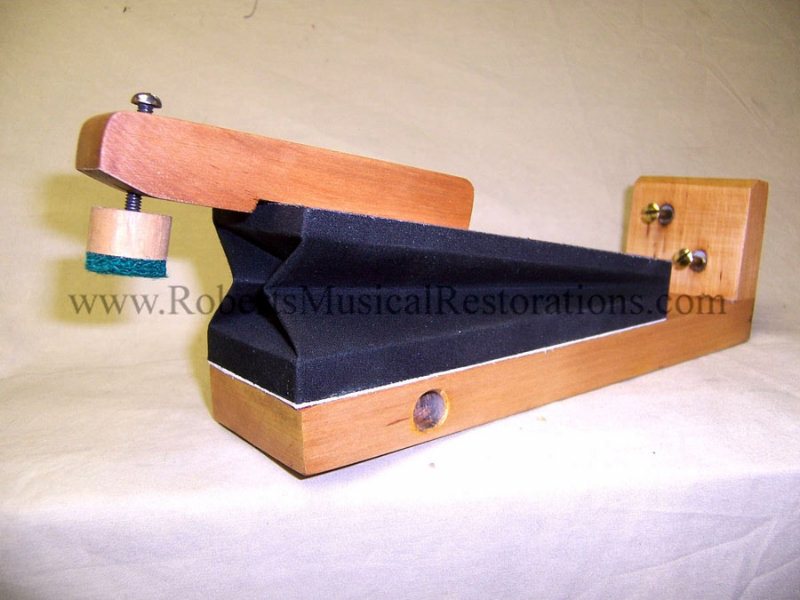

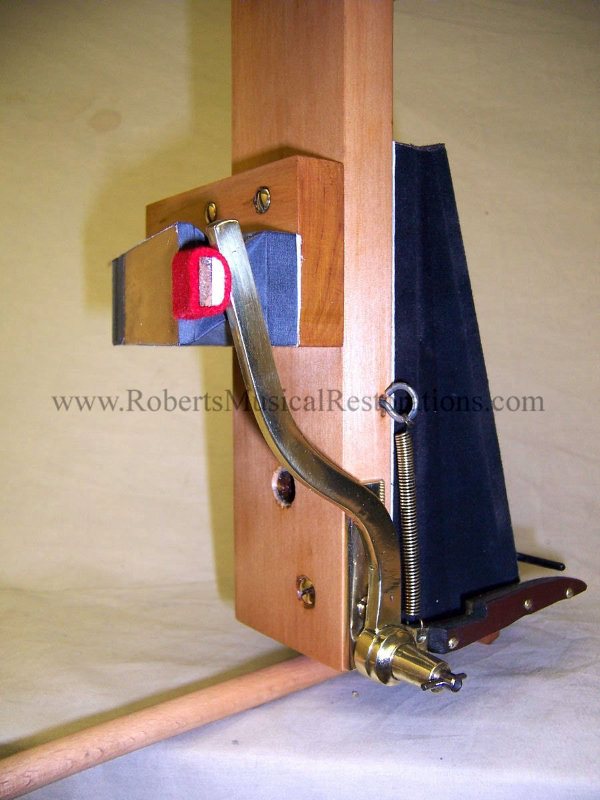

DRUM & BEATER MECHANISMS

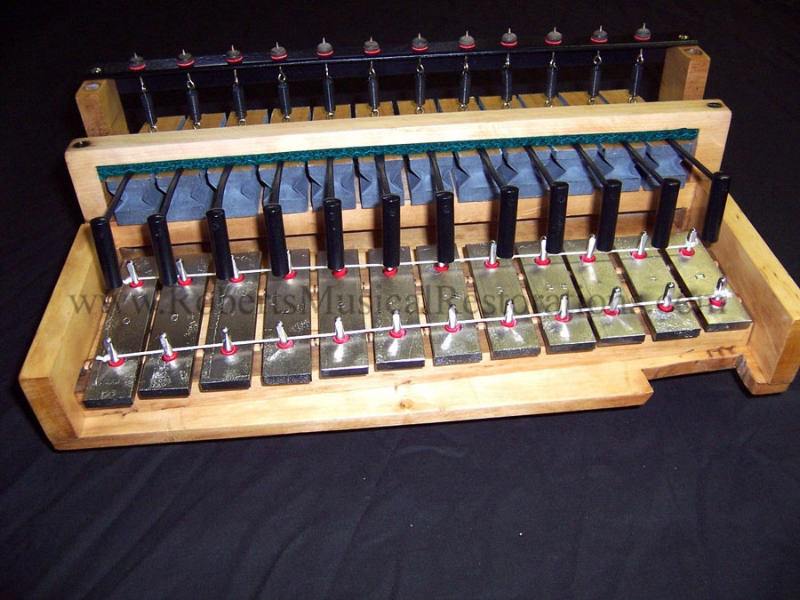

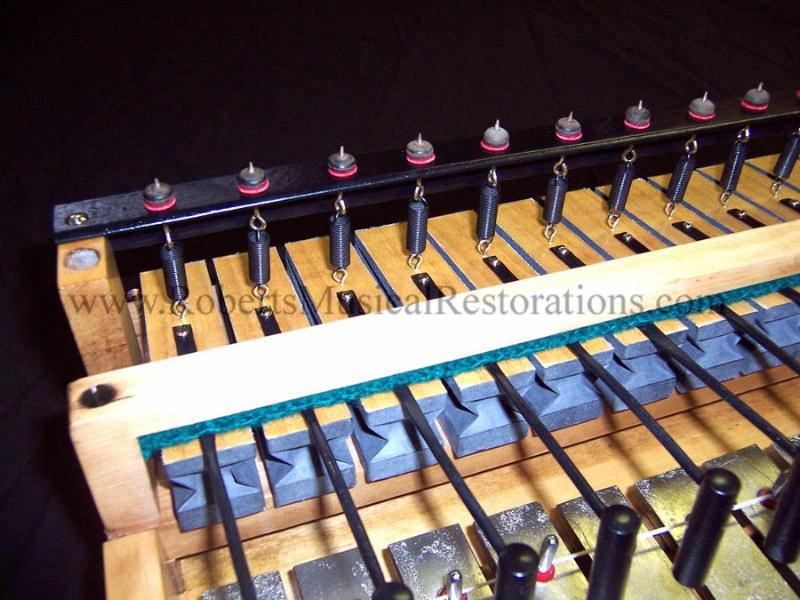

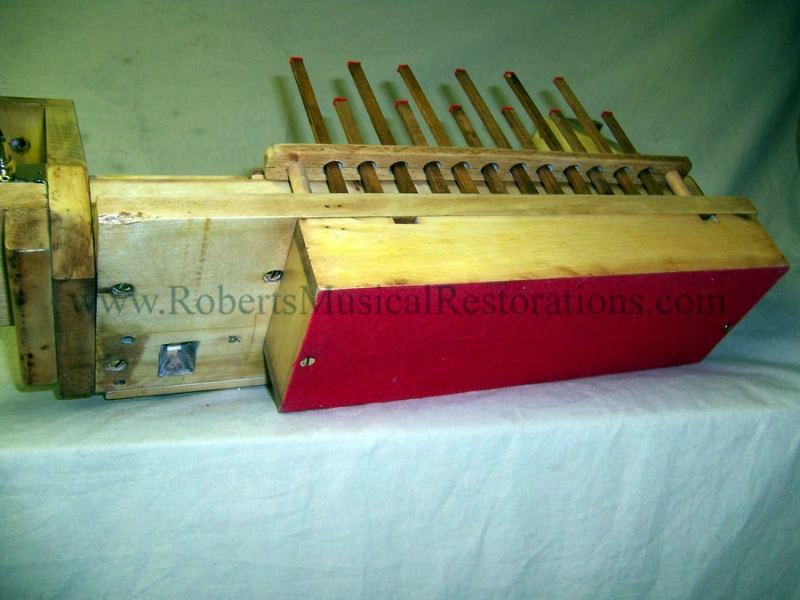

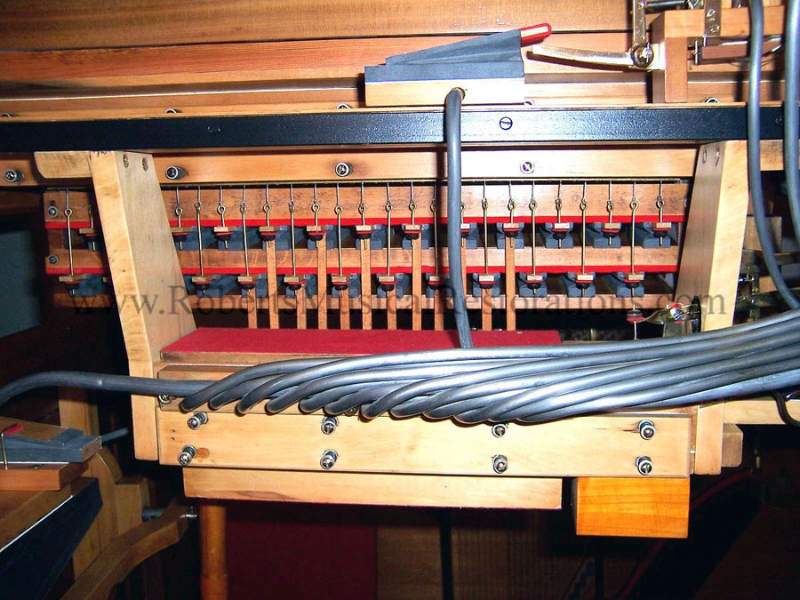

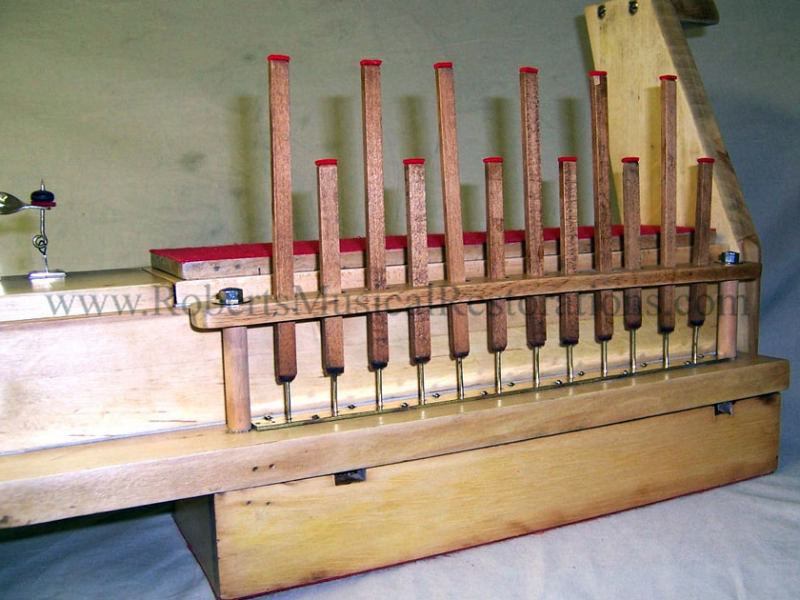

BELL UNIT

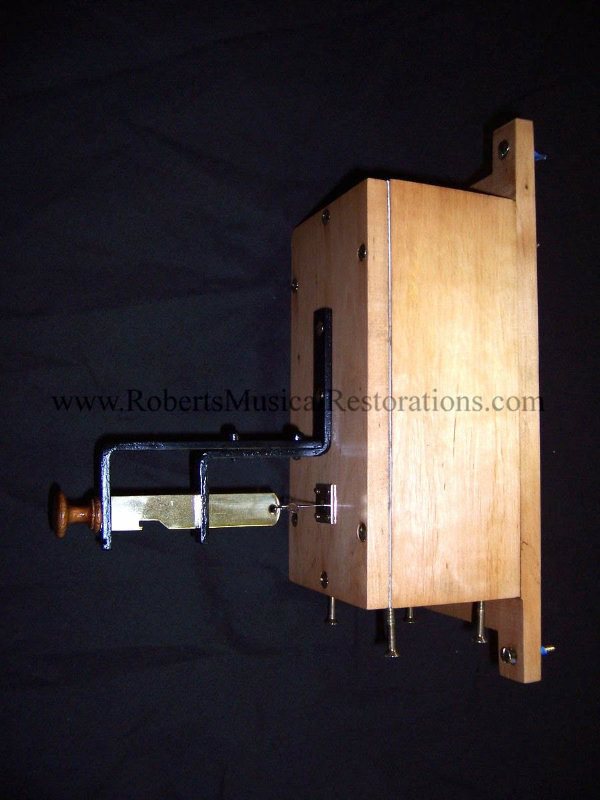

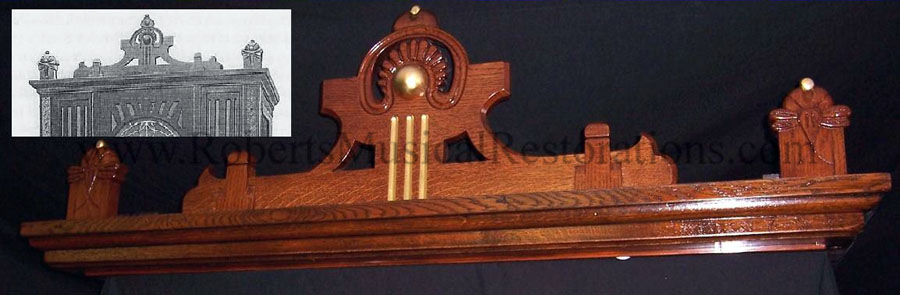

MISCELLANEOUS COMPLETED ITEMS

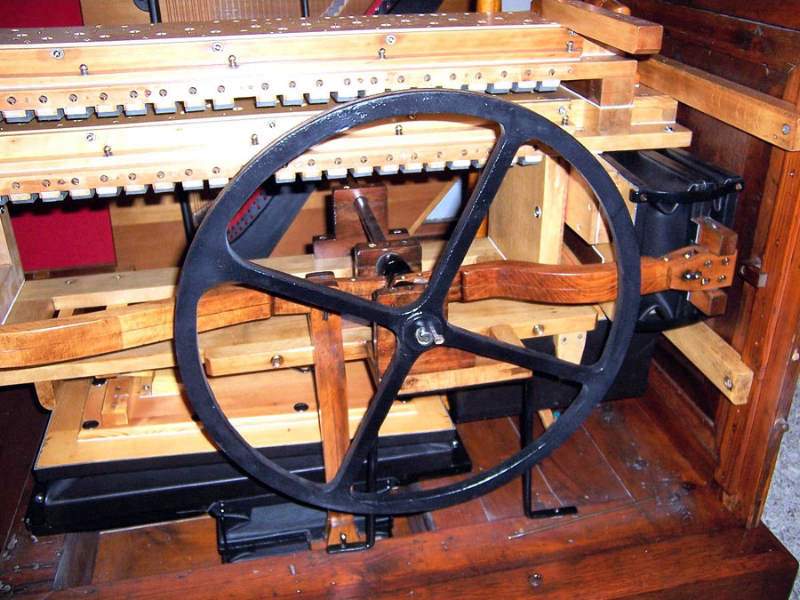

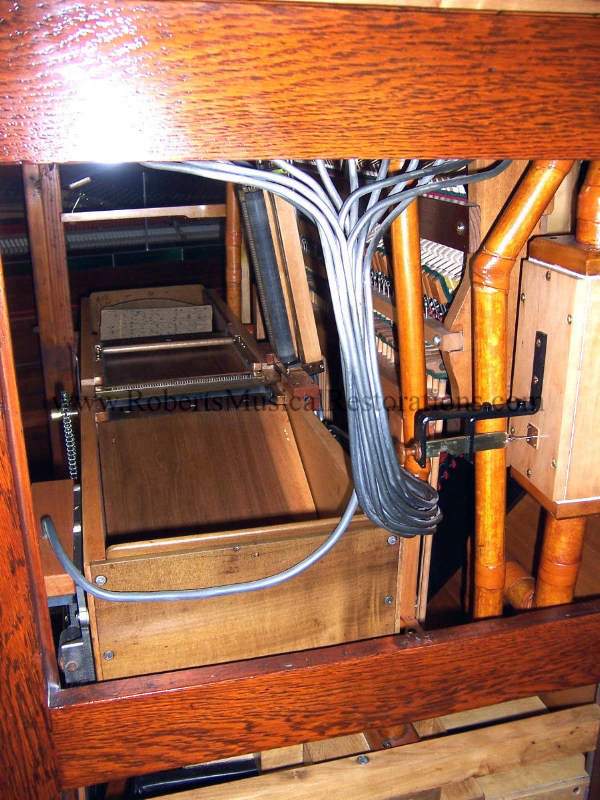

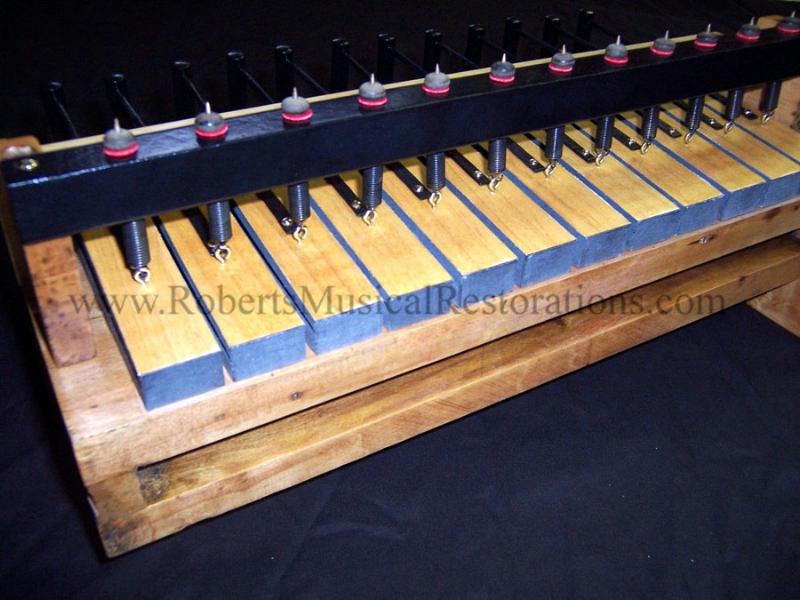

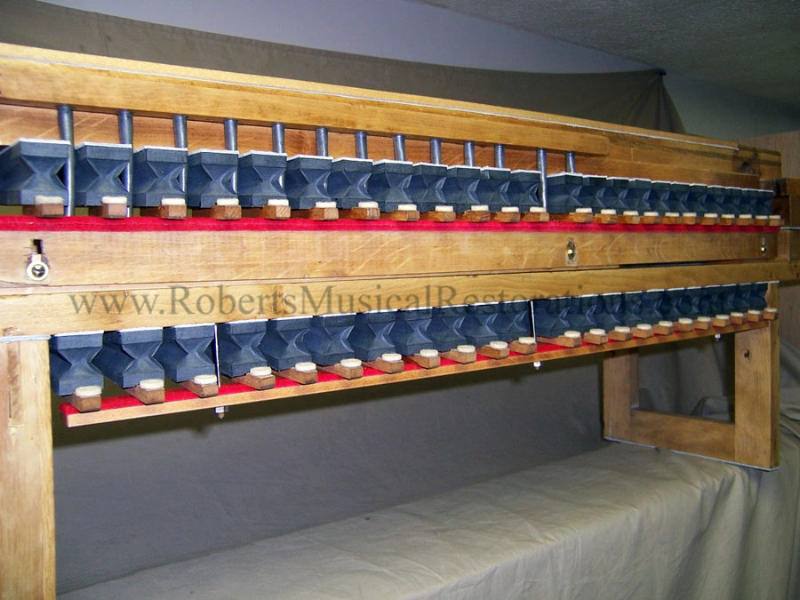

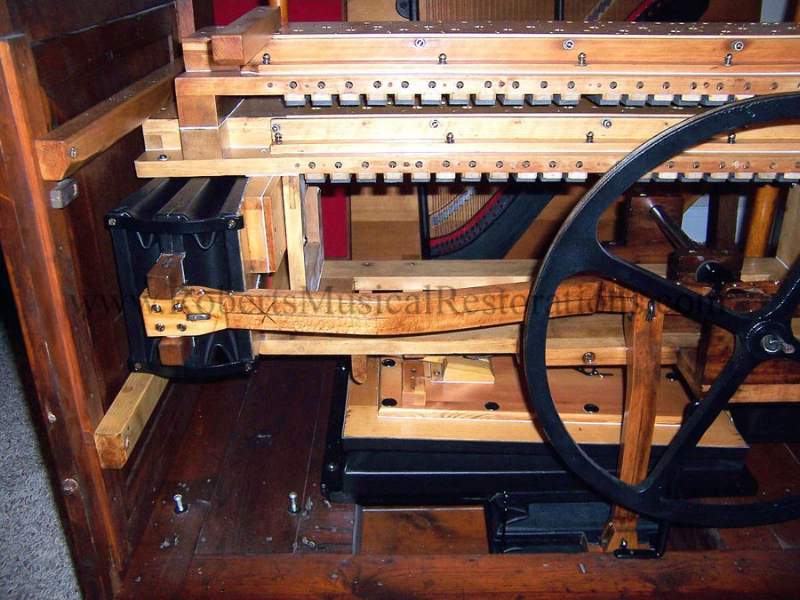

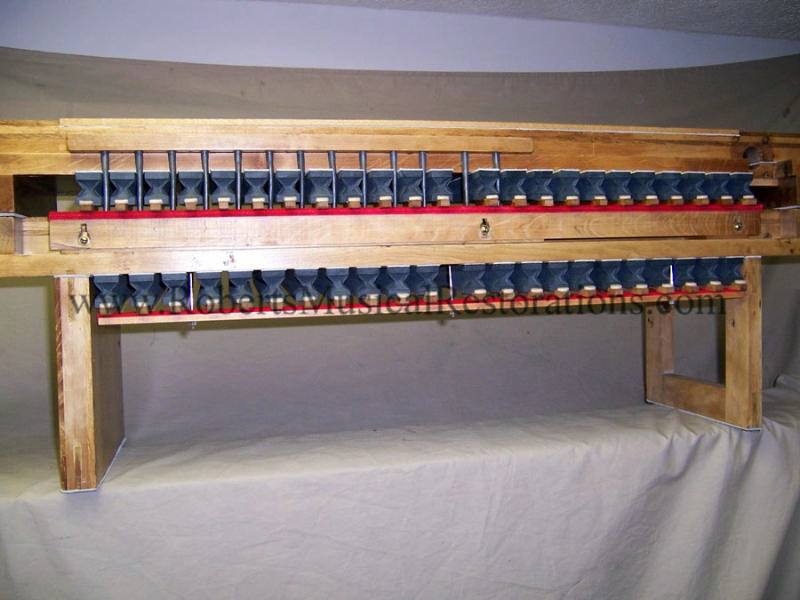

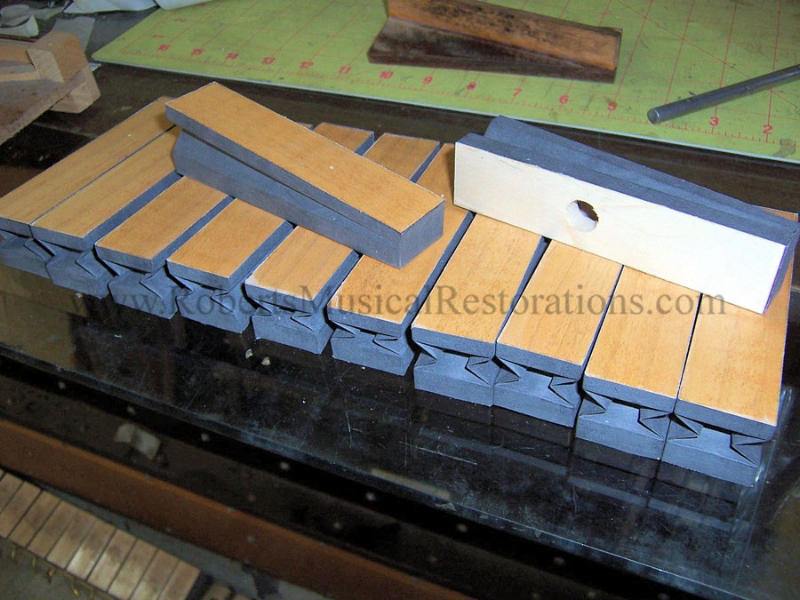

PLAYER ACTION & VACUUM PUMP
RANDOM PICTURES
.jpg "Click to enlarge image imhofcompl(3).jpg")
.jpg "Click to enlarge image imhofcompl(4).jpg")

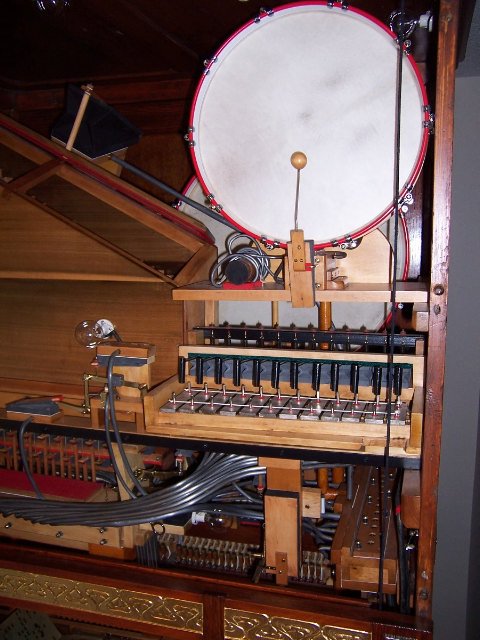

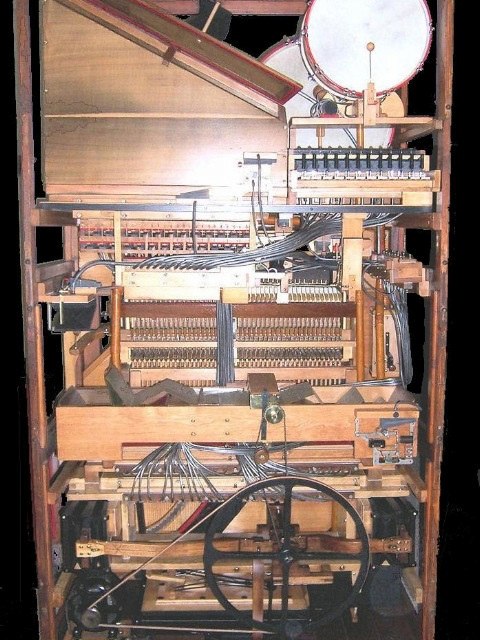

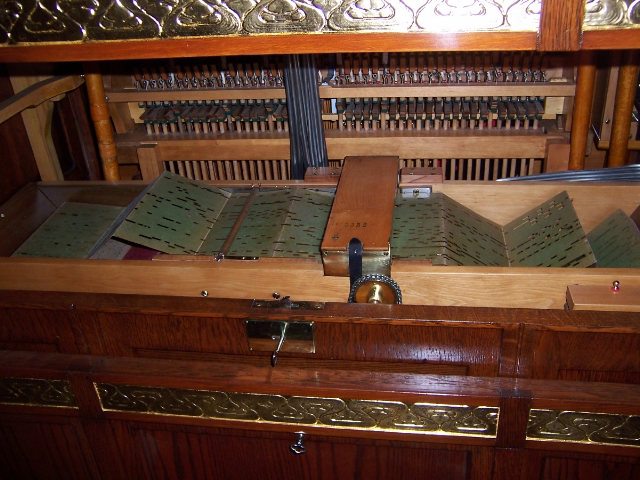

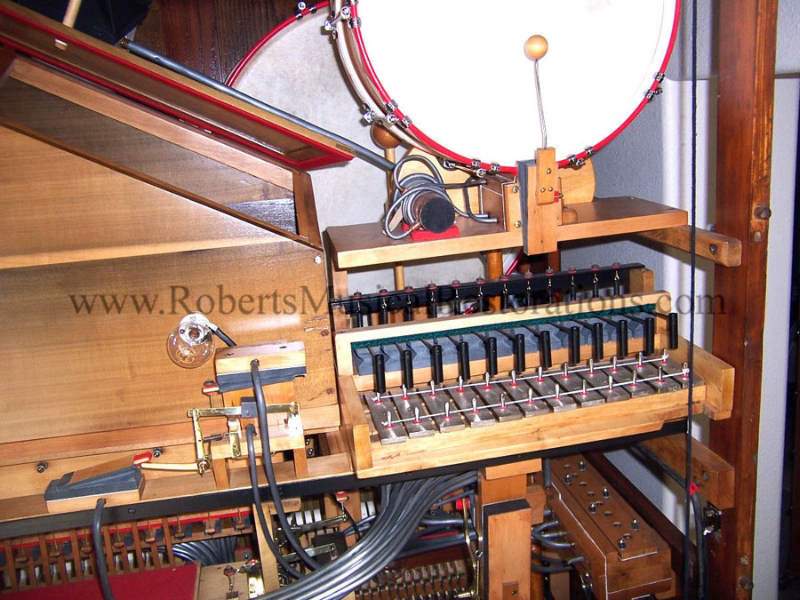

COMPLETED PICTURES & VIDEO'S
