The Wurlitzer Tonophone was similar to the Barrel Organs of the amusement parks, The Wurlitzer Tonophone brought public music
indoors- into the hotels, cafes and restaurants. It played for nickels and the ten tunes offered ranged from classical to ragtime numbers.The Tonophone was Wurlitzer's first mechanical playing piano.Pneumatically operated by a pinned cylinder. instead of being operated by direct mechanical linkages. The cylinder pins lifts levers which opened valves to a pneumatic mechanism which operated the piano. First shown at the 1901 Pan-American Exposition, the Tonophone won a gold medal at the exhibition, and went on to be a commercial success. Today, there are thought to be fewer than four complete and working Tonophone's left in the world.

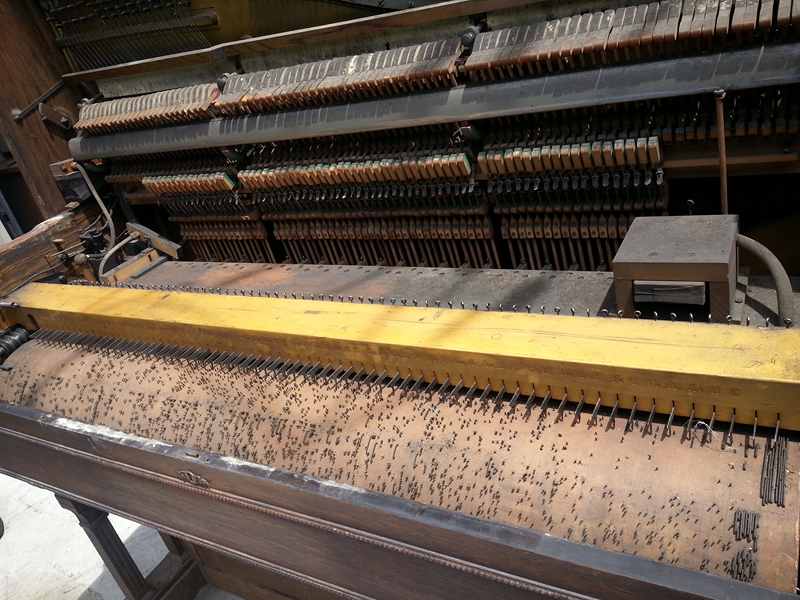

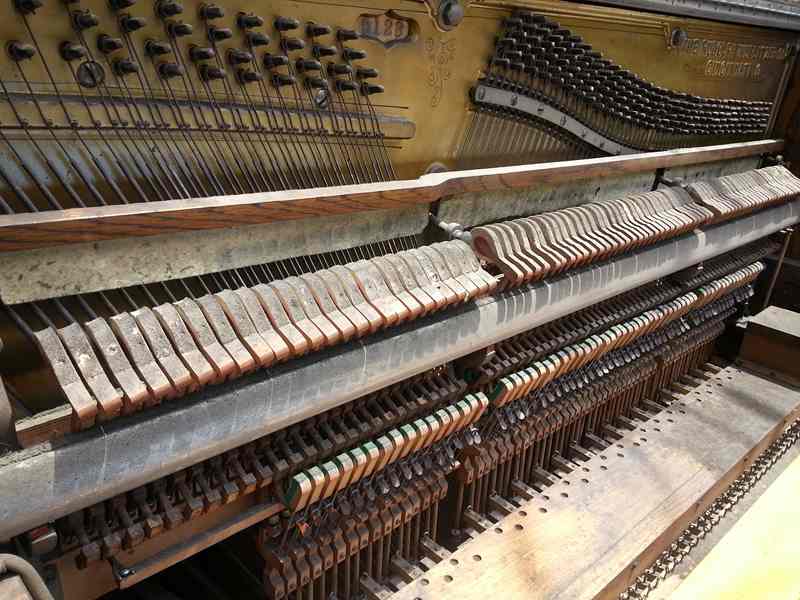

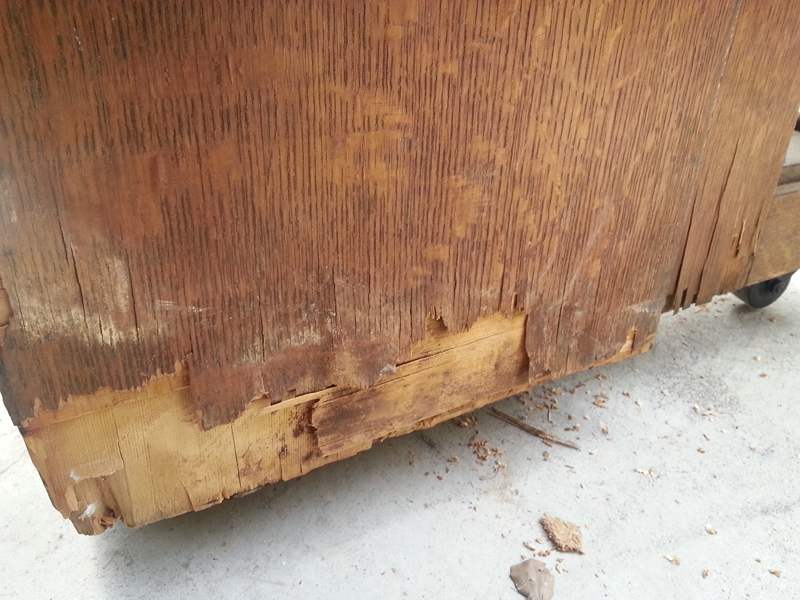

*****Before******
https://robertsmusicalrestorations.com/index.php/restoration-projects/completed/2-tonophone#sigProIdb0545183ff
*****The Restoration*****
Pictures are in random order.
Vacuum Pump
-

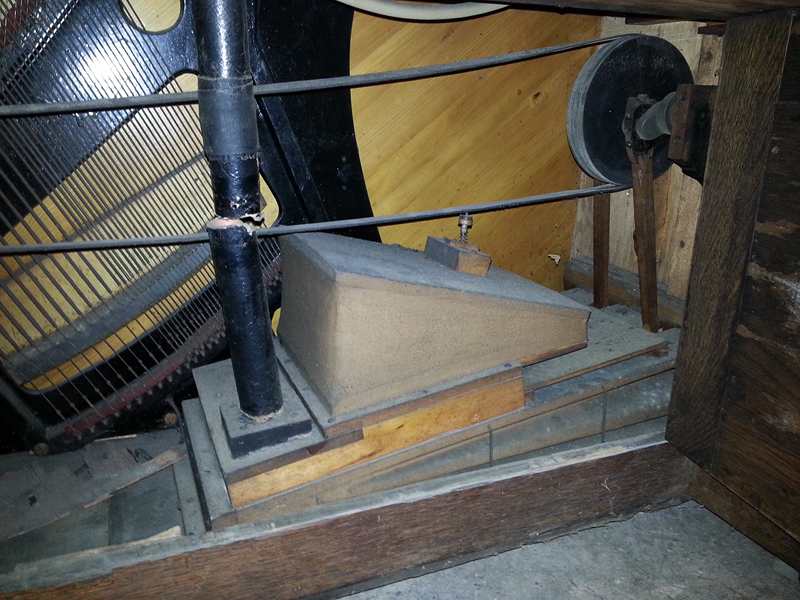

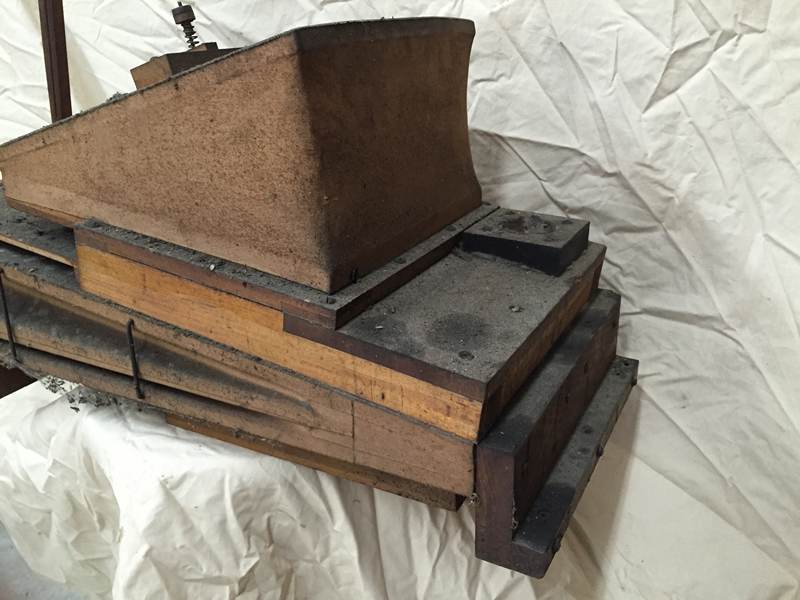

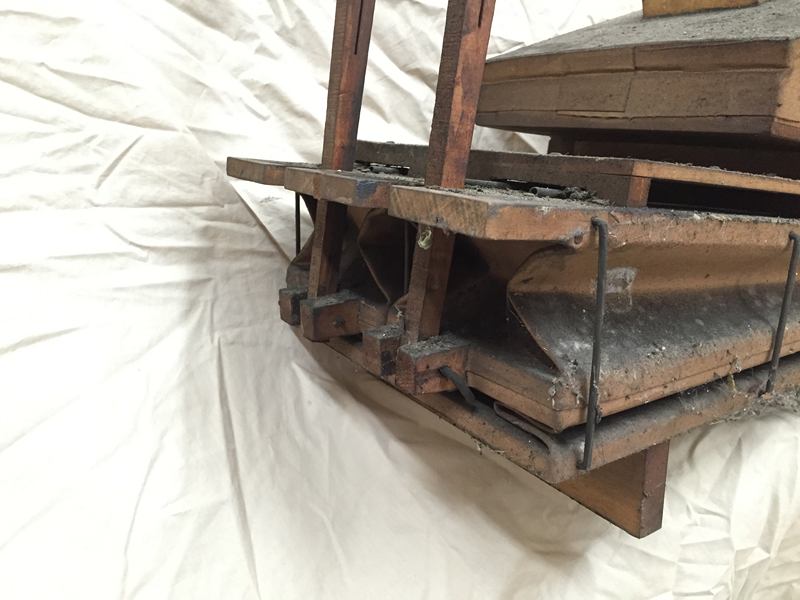

Old Pump Old Pump
-
-
-
-
-
-

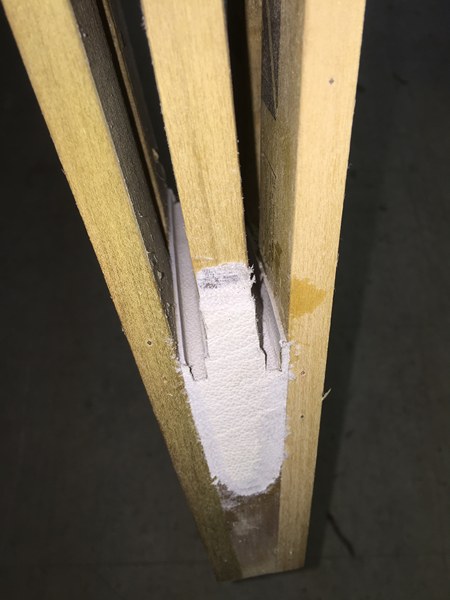

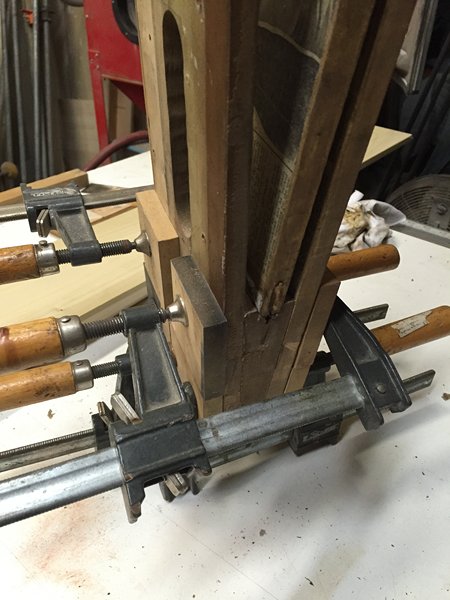

Pump was falling apart. Lined up and glued back together Pump was falling apart. Lined up and glued back together
-
Replaced Hemp cord in movable board socket and normally cover with a thin piece of leather like you see here. Replaced Hemp cord in movable board socket and normally cover with a thin piece of leather like you see here.
-

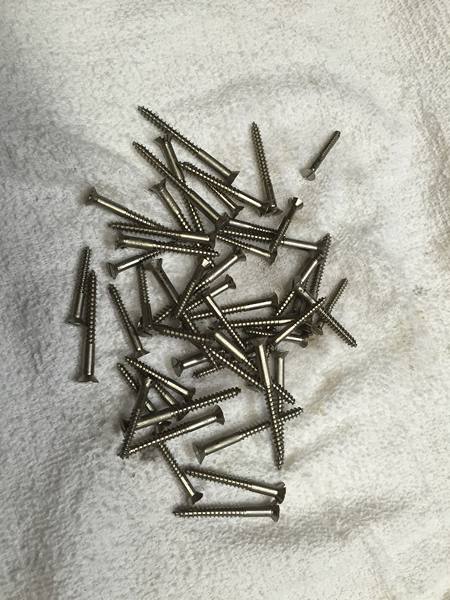

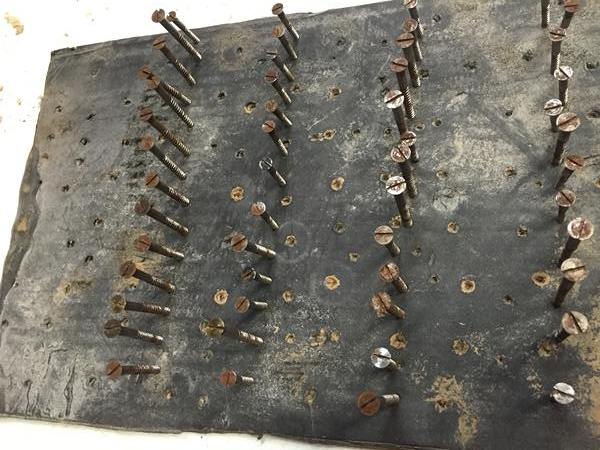

All screws are glass beaded and nickel plated to prvent rust in the future. All blue screws are re-blued and sealed. NOTHING gets overlooked All screws are glass beaded and nickel plated to prvent rust in the future. All blue screws are re-blued and sealed. NOTHING gets overlooked
-
Sand blasted Sand blasted
-
Plated Plated
-
Valve flap cover box Valve flap cover box
-

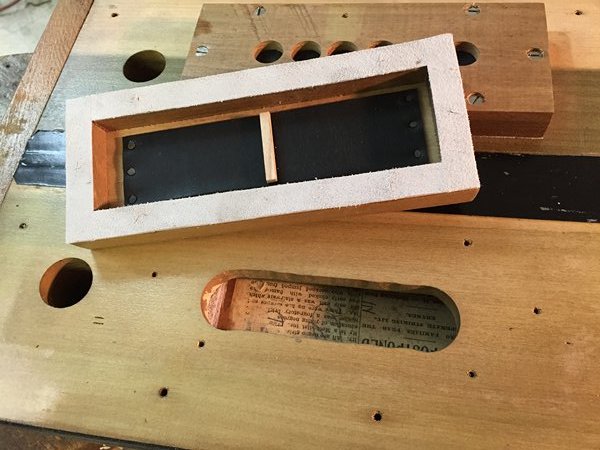

Valve flap. I glue a small strip of hardwood over the leather flap to prevent possible curling in the future. And keeps the flap flat. Valve flap. I glue a small strip of hardwood over the leather flap to prevent possible curling in the future. And keeps the flap flat.
-

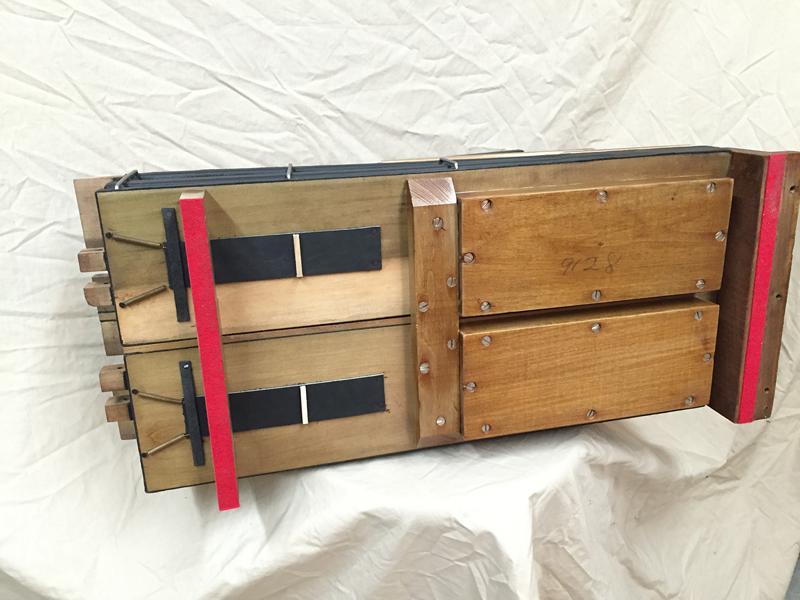

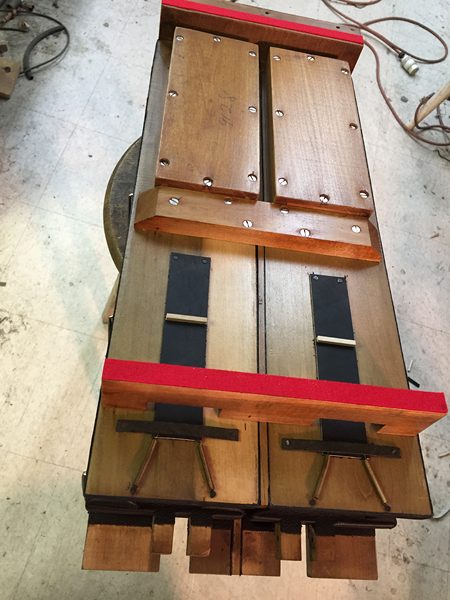

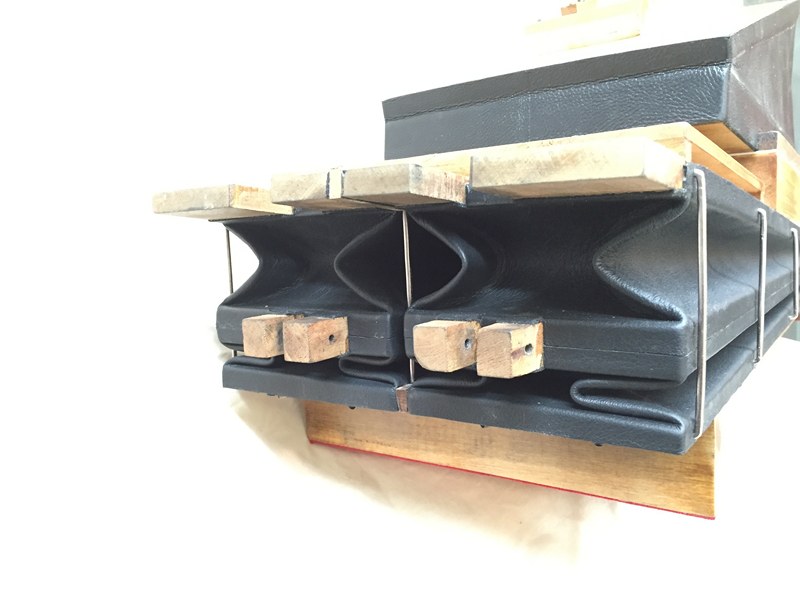

Bottom view, completed Bottom view, completed
-

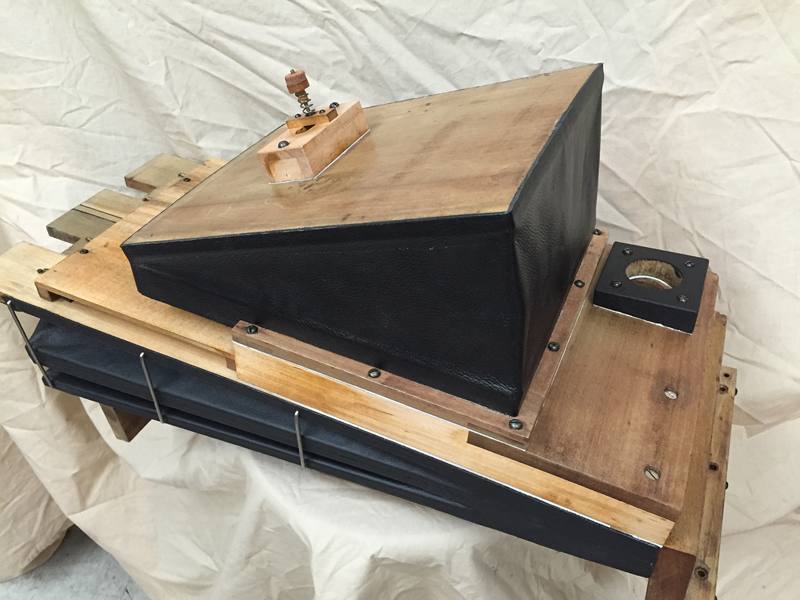

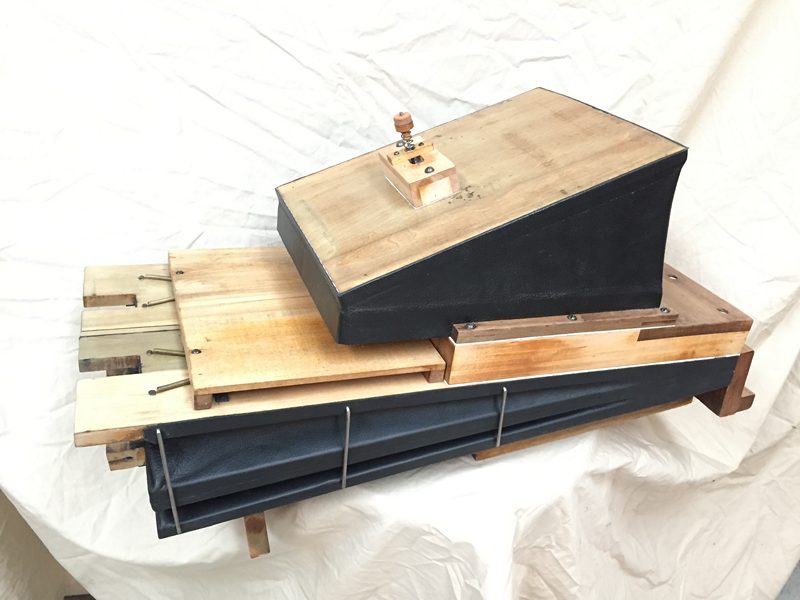

Completed pump Completed pump
-
-
-
-

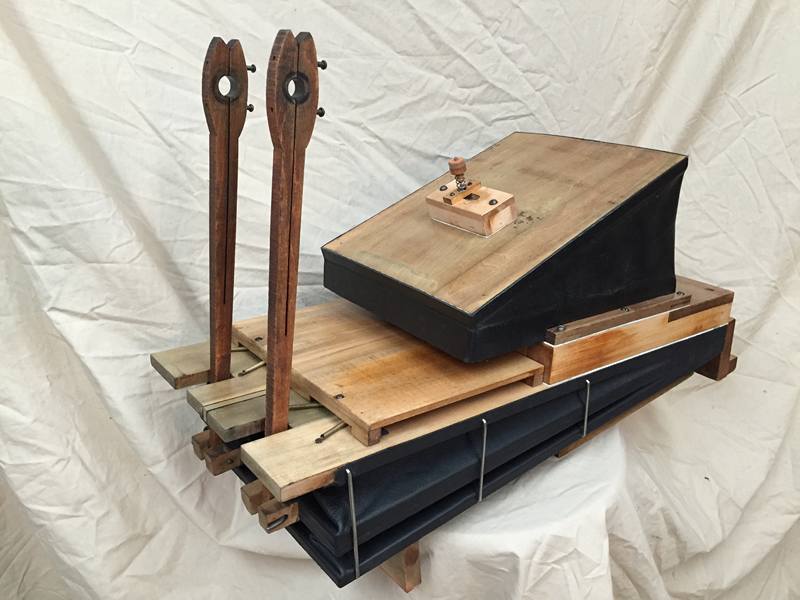

Pump with connecting rods Pump with connecting rods
https://robertsmusicalrestorations.com/index.php/restoration-projects/completed/2-tonophone#sigProIdab7e6043bf
Player Action
-

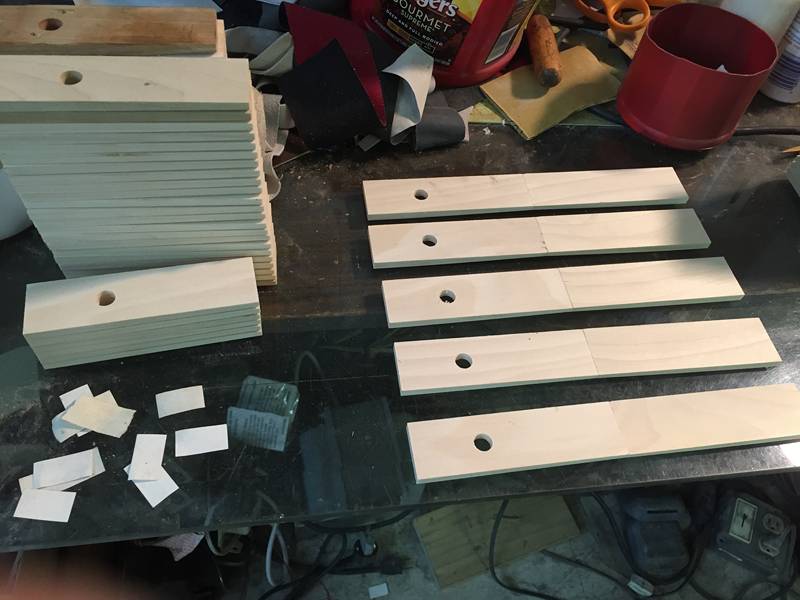

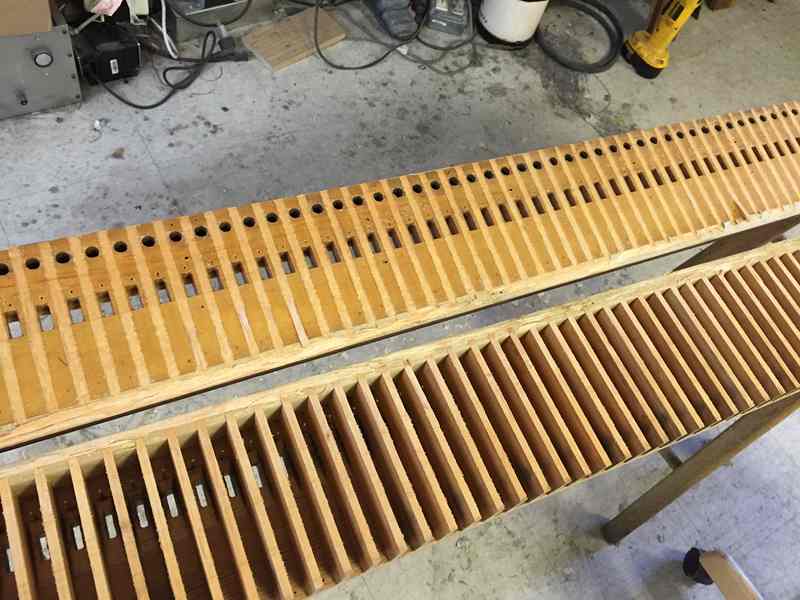

New Pneumatic boards New Pneumatic boards
-
New hinge New hinge
-

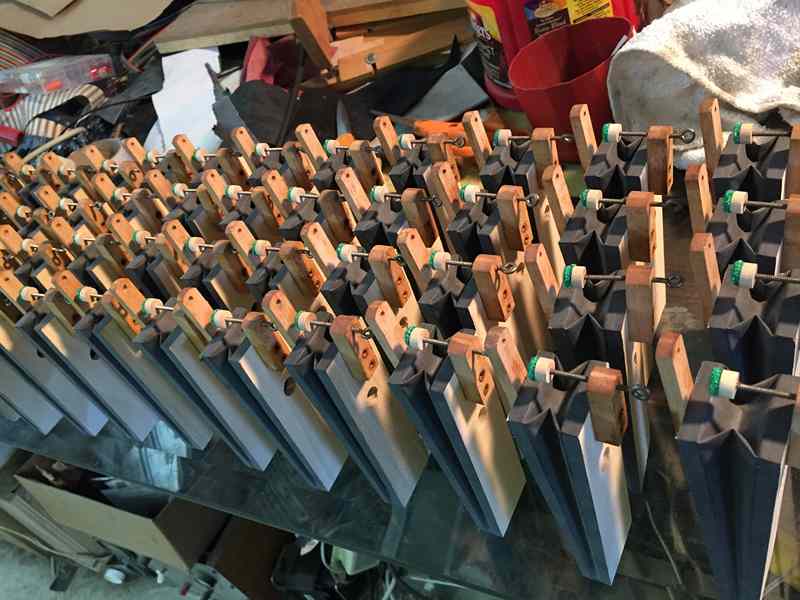

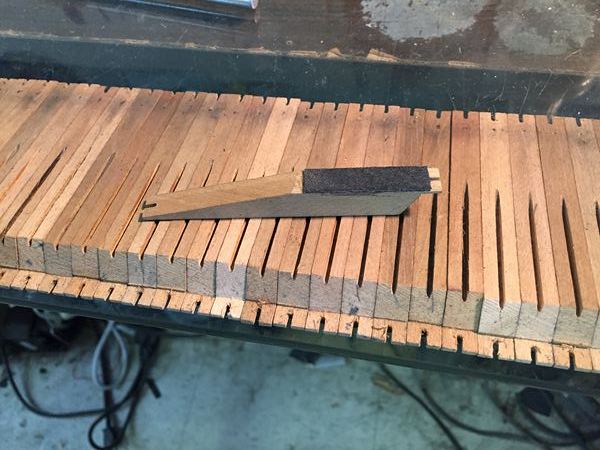

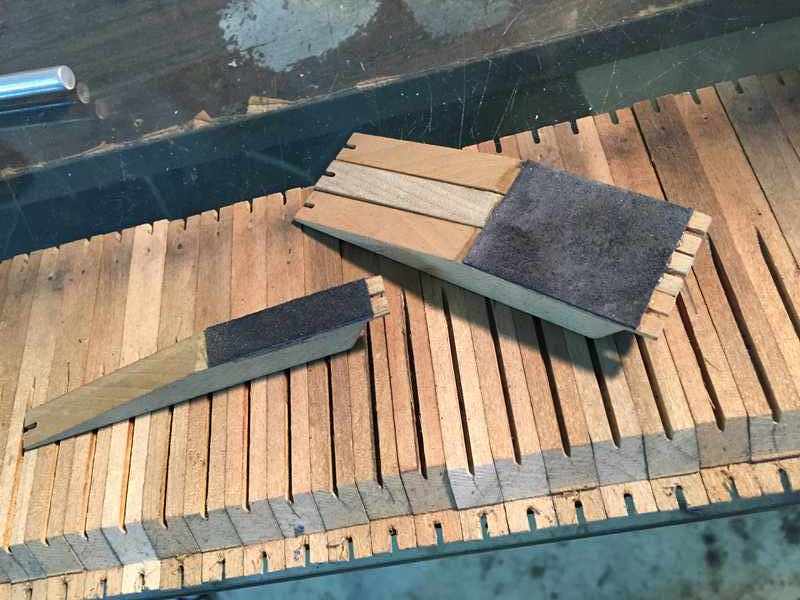

Showing the differant steps in covering the pneumatics Showing the differant steps in covering the pneumatics
-

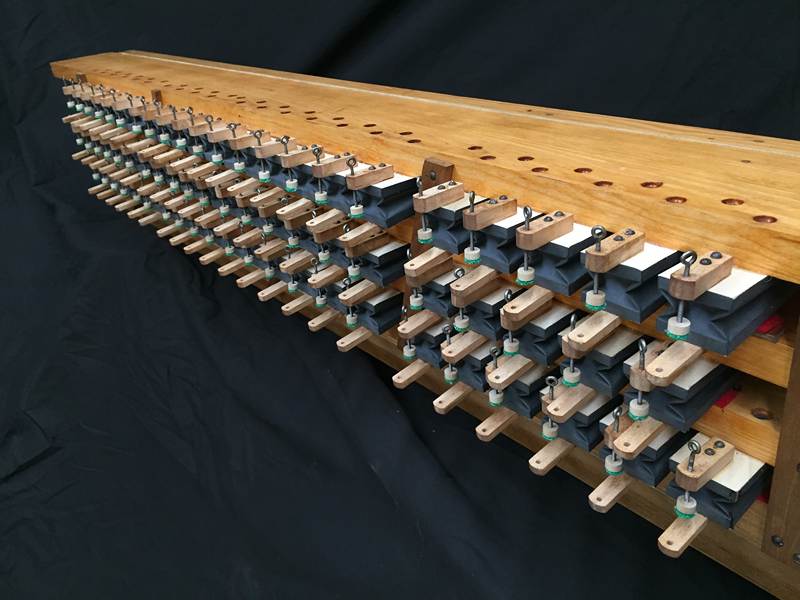

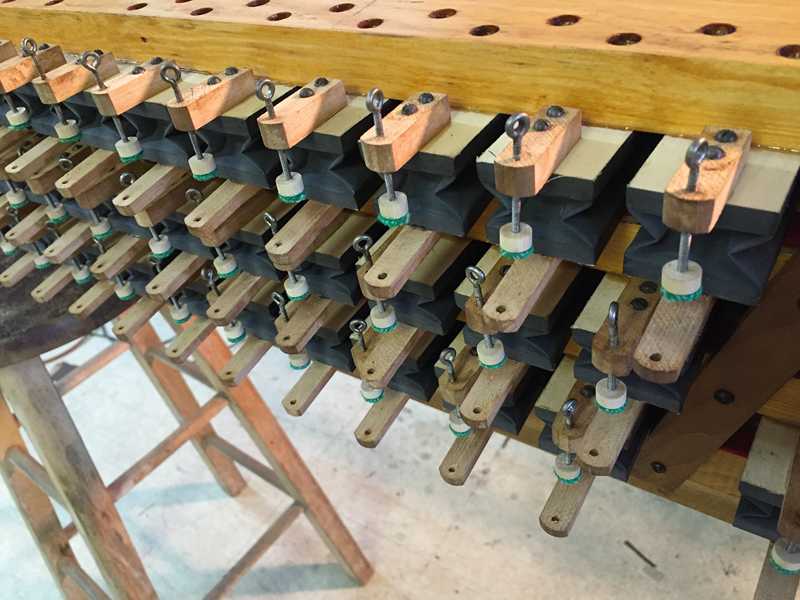

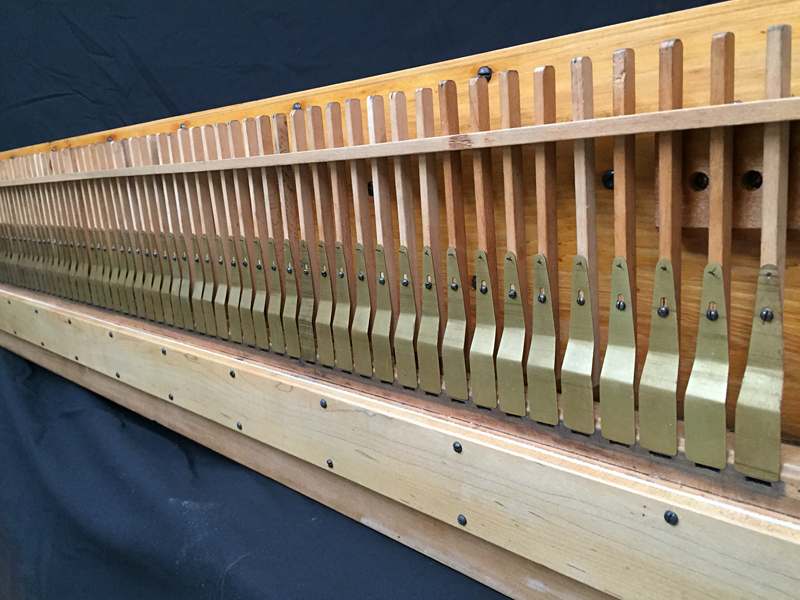

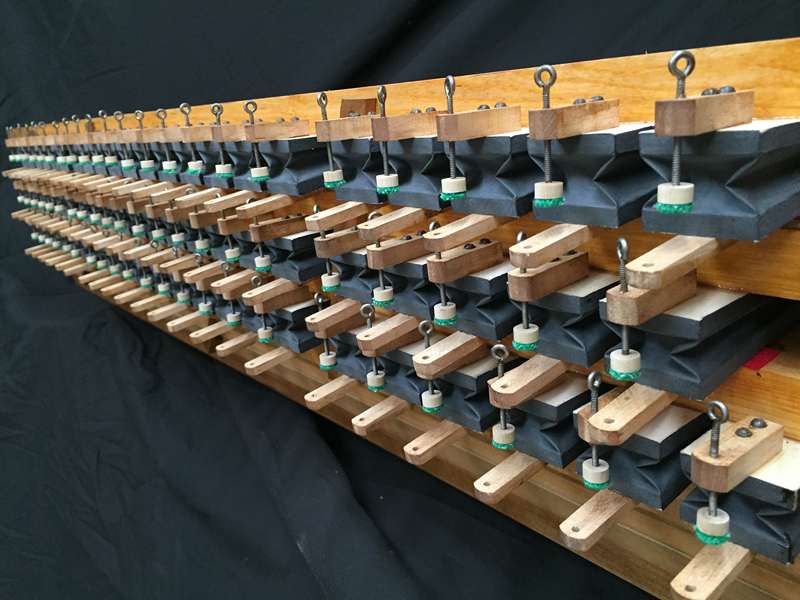

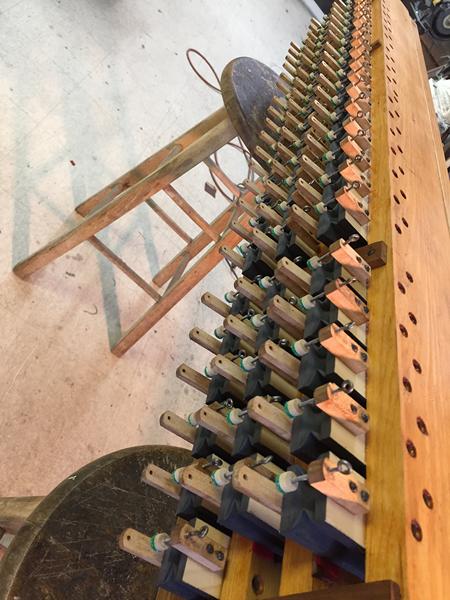

All done with the fingers installed All done with the fingers installed
-
Pallet valves being covered Pallet valves being covered
-
Glued the valves to the leather and then separated with a razer blade. Glued the valves to the leather and then separated with a razer blade.
-
Player chest had to be pryed open. Player chest had to be pryed open.
-

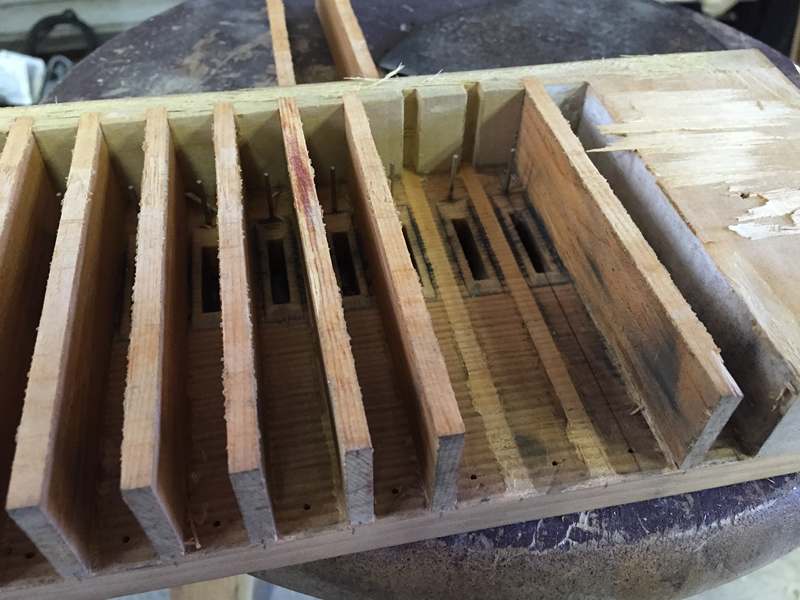

Over time the hide glue dried up and the partitions where no longer sealed. The top was removed and all partitions where removed and re-glued. Then top was reinstalled. Over time the hide glue dried up and the partitions where no longer sealed. The top was removed and all partitions where removed and re-glued. Then top was reinstalled.
-

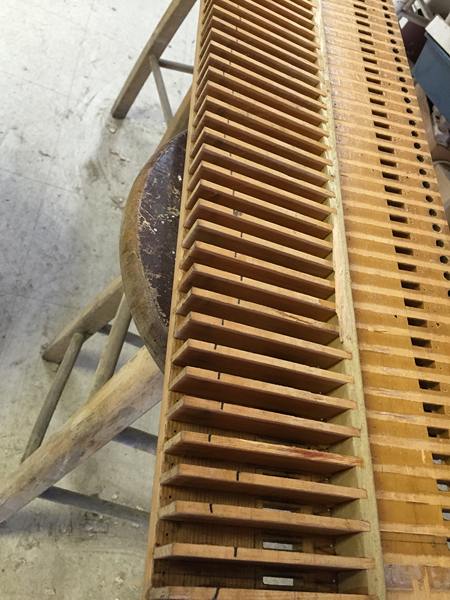

Partitions glued in place. Partitions glued in place.
-

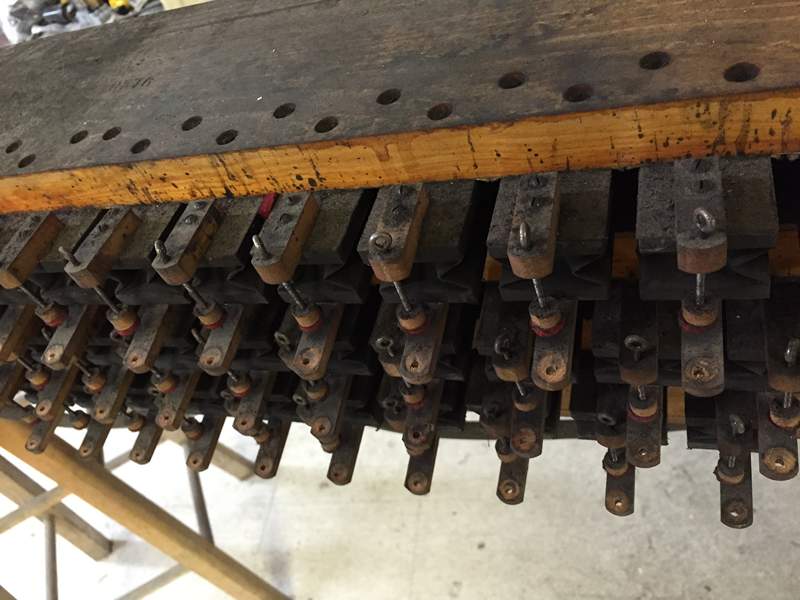

Before Before
-
After After
-
-

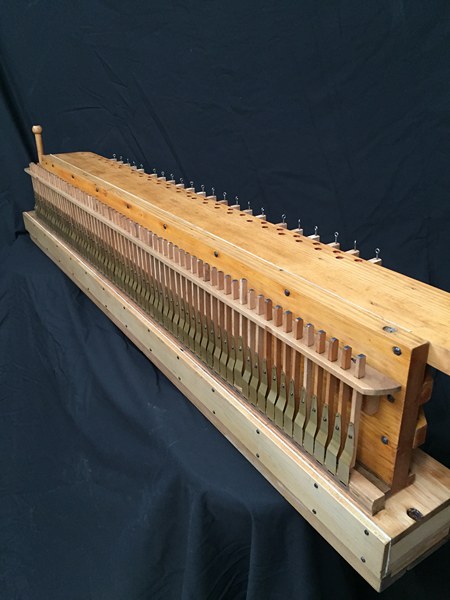

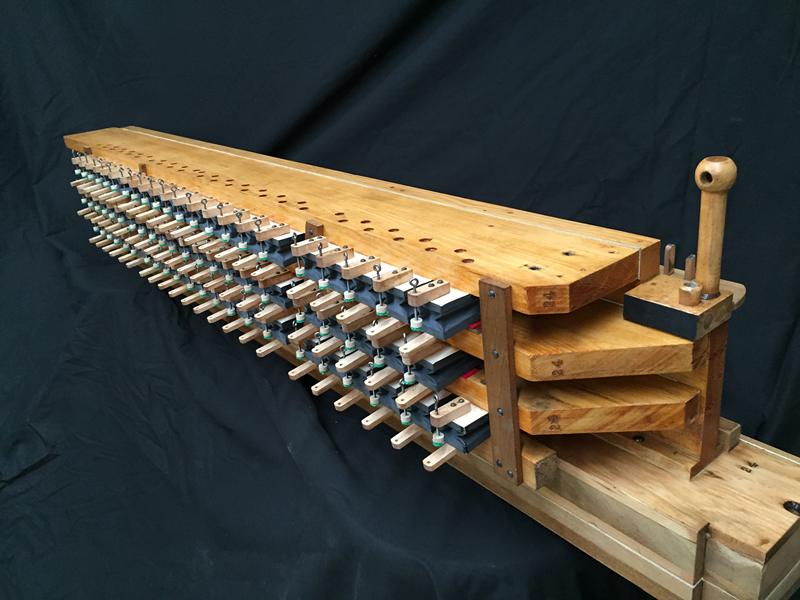

Complete!! Complete!!
-
-
-
-
https://robertsmusicalrestorations.com/index.php/restoration-projects/completed/2-tonophone#sigProId0566ab9af8
Plate and Soundboard
Soundboard was cracked and warped in such a way that deemed it unrepairable. A new one was made.
Counter
A new counter had to be fabricated. It allows the barrel to turn 2 revolutions before it shuts off. The original was taken off another Tonophone on premises.
